SKU: RATY40-XL-INA

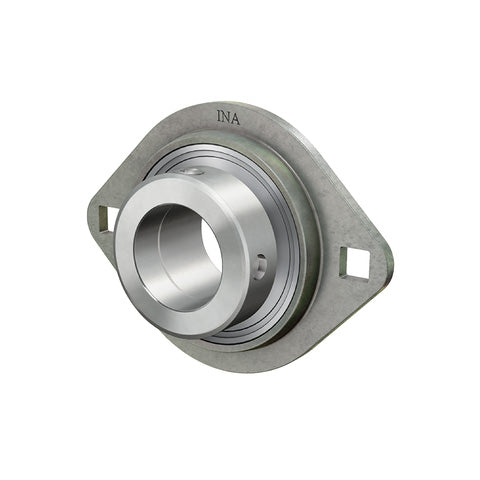

INA RATY40XL Two Bolt Sheet Steel Oval Housing with Grub Screw Insert 40mm Bore
INA RATY40XL Two Bolt Sheet Steel Oval Housing with Grub Screw Insert 40mm Bore
Regular price
CHF 42.00
ex VAT
Regular price
Sale price
CHF 42.00
ex VAT
In stock
Price Break
4+
CHF 33.31
9+
CHF 31.44
19+
CHF 31.07
29+
CHF 30.69
39+
CHF 30.32
49+
CHF 29.94
59+
CHF 28.07
69+
CHF 27.70
79+
CHF 27.32
89+
CHF 26.95
99+
CHF 26.20
Quantity
Couldn't load pickup availability
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, grub screw fixing, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Style:
- RATY
- Bolt Hole Centres:
- 119mm
Technical
Technical

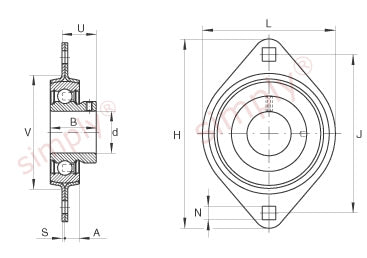

| d | 40mm |
|---|---|
| H | 151mm |
| U | 32.5mm |
| A | 11.5mm |
| B | 39.5mm |
| J | 119mm |
| L | 100mm |
| N | 13.5mm |
| S | 3.5mm |
| V | 90mm |
| Mass | 0.85 kg |
| Load carrying capacity of housing Cor G | 7000 N |
| Basic dynamic load rating Cr | 34500 N |
| Basic static load rating Cor | 19800 N |
| Designation of housing | FLAN80-MST (2 X) |
| Designation of bearing | GAY40-XL-NPP-B |
