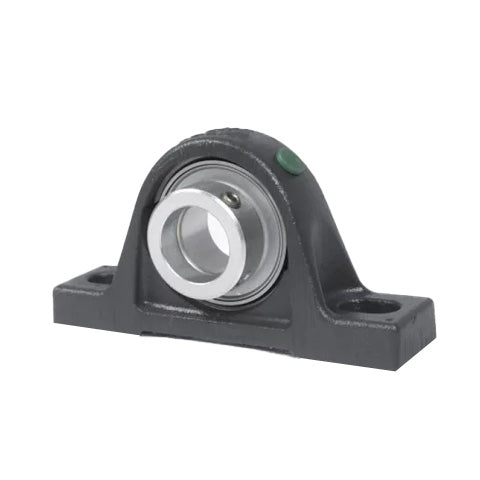

INA RASEL30XLN Cast Iron Plummer Block Housing with Drive Slot Insert 30mm Bore
INA RASEL30XLN Cast Iron Plummer Block Housing with Drive Slot Insert 30mm Bore
Regular price
CHF 66.00
ex VAT
Regular price
Sale price
CHF 66.00
ex VAT
In stock
Price Break
4+
CHF 52.28
9+
CHF 49.34
19+
CHF 48.75
29+
CHF 48.17
39+
CHF 47.58
49+
CHF 46.99
59+
CHF 44.06
69+
CHF 43.47
79+
CHF 42.88
89+
CHF 42.29
99+
CHF 41.12
Quantity
Couldn't load pickup availability
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with a drive slot. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: High load carrying capacity, re-lubricatable, drive slot insert, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Style:
- RASEL
- Bolt Hole Centres:
- 118mm
Technical
Technical
| d | 30mm |
|---|---|
| L | 158mm |
| H2 | 82mm |
| A | 40mm |
| A1 | 25mm |
| B | 36.5mm |
| H | 42.9mm |
| H1 | 17mm |
| J | 118mm |
| N | 14mm |
| N1 | 22mm |
| Q | M6 |
| S1 | 22mm |
| Mass | 1.1 kg |
| Basic dynamic load rating Cr | 20700 N |
| Basic static load rating Cor | 11300 N |
| Designation of housing | ASE06 |
| Designation of bearing | GLE30-XL-KRR-B |
| Bearing end cap, closed design (to be ordered separately) | KASK06 |
