SKU: Q.202

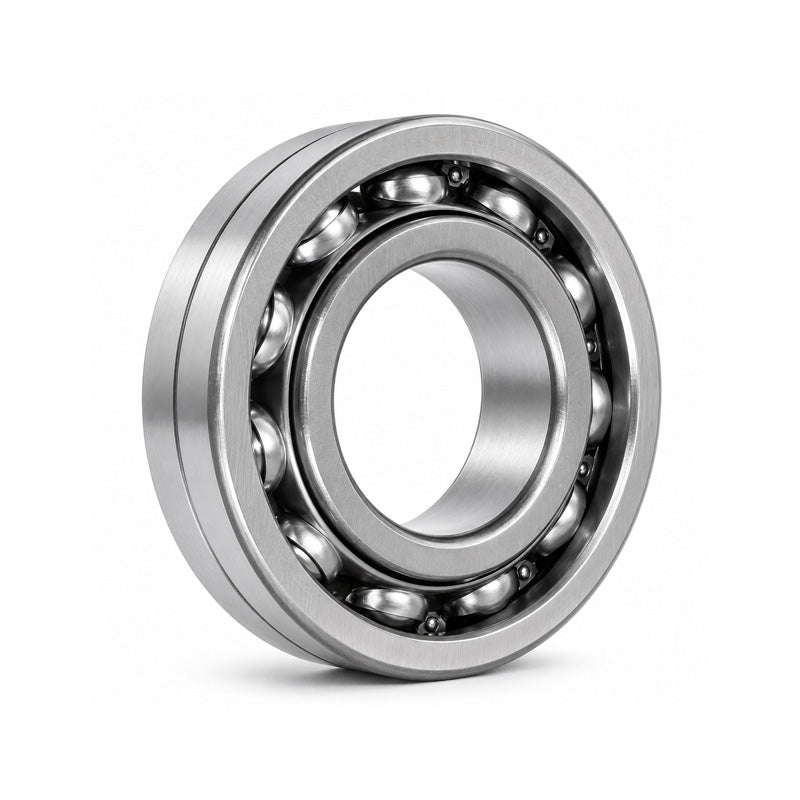

Premier Budget Q202 Four Point Contact Ball Bearing (Two Part Outer Race) 15x35x11mm
Premier Budget Q202 Four Point Contact Ball Bearing (Two Part Outer Race) 15x35x11mm
Out of stock
Share this product
Description
Description
Four Point Contact Ball Bearings: Are radial single row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The outer raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double row ball bearing of equivalent bore size
Benefits: Supports axial loads in both directions, ease of mounting.
Benefits: Supports axial loads in both directions, ease of mounting.
- Brand / Quality:
- Premier Budget - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 11mm |
| Dynamic Load | 12.4 kN |
| Static Load | 21462 kN |
| Speed in grease max | 15043 rpm |
| Speed in oil max dia | 21462 rpm |
| Weight | 0.063 kg |
