SKU: Q.1036

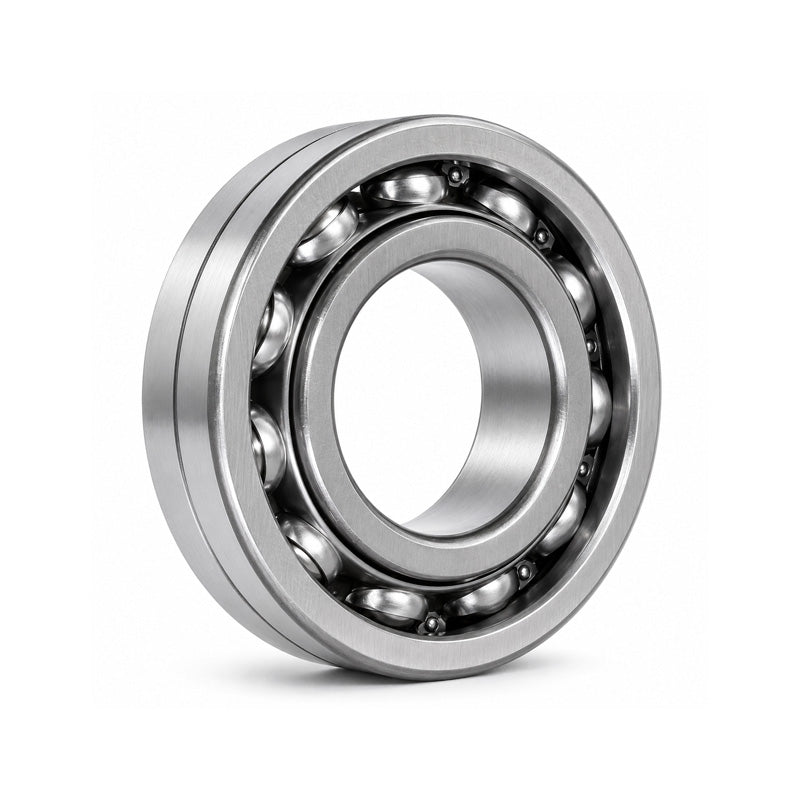

Premier Budget Q1036 Four Point Contact Ball Bearing (Two Part Outer Race) 180x280x46mm
Premier Budget Q1036 Four Point Contact Ball Bearing (Two Part Outer Race) 180x280x46mm
Out of stock
Share this product
Description
Description
Four Point Contact Ball Bearings: Are radial single row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The outer raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double row ball bearing of equivalent bore size
Benefits: Supports axial loads in both directions, ease of mounting.
Benefits: Supports axial loads in both directions, ease of mounting.
- Brand / Quality:
- Premier Budget - High Quality
- Inside Diameter:
- 180mm
- Outside Diameter:
- 280mm
- Width:
- 46mm
Technical
Technical
| d | 180mm |
|---|---|
| D | 280mm |
| B | 46mm |
| Dynamic Load | 271 kN |
| Static Load | 2254 kN |
| Speed in grease max | 1617 rpm |
| Speed in oil max dia | 2254 rpm |
| Weight | 11.55 kg |
