SKU: PI50+D1400-050
Chiavette PI50 Steel Clevis Pin and Circlip 50x117.3mm - Allow 7-10 Days
Chiavette PI50 Steel Clevis Pin and Circlip 50x117.3mm - Allow 7-10 Days
Out of stock
Share this product
Description
Description

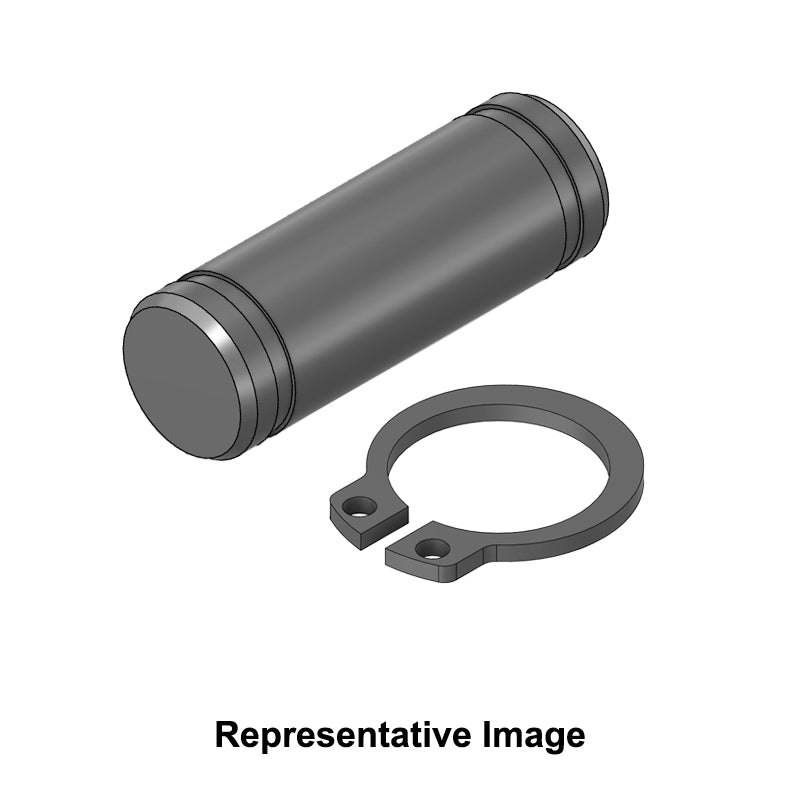

Chiavette Steel Clevis Pin with Circlip: This kit includes a clevis pin and a matching circlip to ensure secure and steadfast attachment in various applications. Clevis pins enable secure attachment and 360-degree swivel or rotational action of linked parts. The clevis pin itself fits between the forks of a clevis and is securely held in position with the included circlip that fits within the groove of the pin on one end. Crafted from high-quality steel, our clevis pin set guarantees exceptional strength and longevity.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 50mm
- Length:
- 100mm
- Material:
- Steel
Technical
Technical
| --- | Clevis Pin |
|---|---|
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PI50+Pin>PI50</a> |
| d1 | 50mm |
| l | 117.3mm (+0.5mm) |
| d2 | 47mm |
| l1 | 100mm (+0.2mm) |
| z | 2mm |
| m | 2.15mm |
| Weight | 1.72kg |
| --- | Circlip |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=D1400-050+Circlip>D1400-050</a> |
| Shaft Size | 50mm |
| Circlip Thickness s | 2mm |
| Thickness Tol. | -0.07mm |
| Unstressed diameter d3 | 45.8mm |
| Unstressed diameter tol | +0.39/-0.90mm |
| Lug a | 6.9mm |
| Beam b | 5.1mm |
| d5 | 2.5mm |
| Groove Diameter | 47mm |
| Groove Tolerance | -0.25mm |
| Minimum groove width | 2.15mm |
| Groove depth | 1.50 mm |
| Weight | 0.0102kg |
