SKU: PFD40TR-SKF

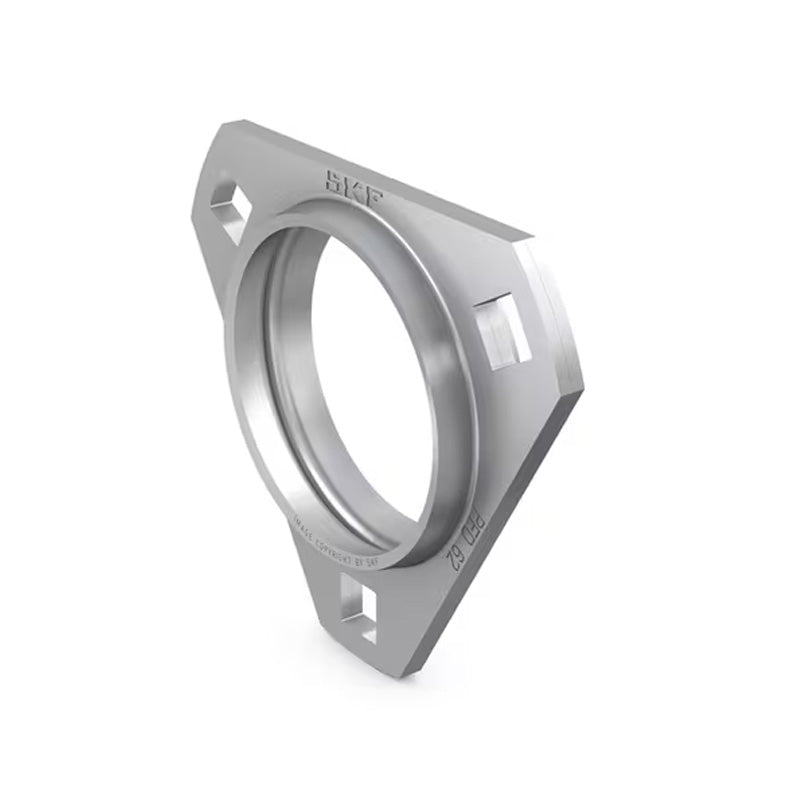

SKF PFD40TR Pressed Steel Triangular Housing with Grub Screw 40mm Insert
SKF PFD40TR Pressed Steel Triangular Housing with Grub Screw 40mm Insert
Out of stock
Description
Description
| SKF Triangular Flanged Y-bearing Units with Pressed Steel Housing and Grub Screws: These units are designed for simple applications with limited loads and speeds. These triangular flanged housings are made of pressed steel and have three square holes for attachment bolts. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- PFD
- Pitch Circle Diameter:
- 119mm

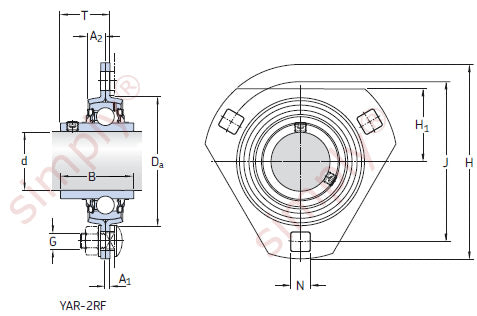

Technical
Technical
| d | 40mm |
|---|---|
| A1 | 3.5mm |
| A2 | 10mm |
| B | 49.2mm |
| Da | 91mm |
| H | 148mm |
| H1/L | 53mm |
| J | 119mm |
| N | 13.5mm |
| G | 12mm |
| T | 33.7mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Permissible housing load | 7.5 kN |
| Weight | 1.02 kg |
