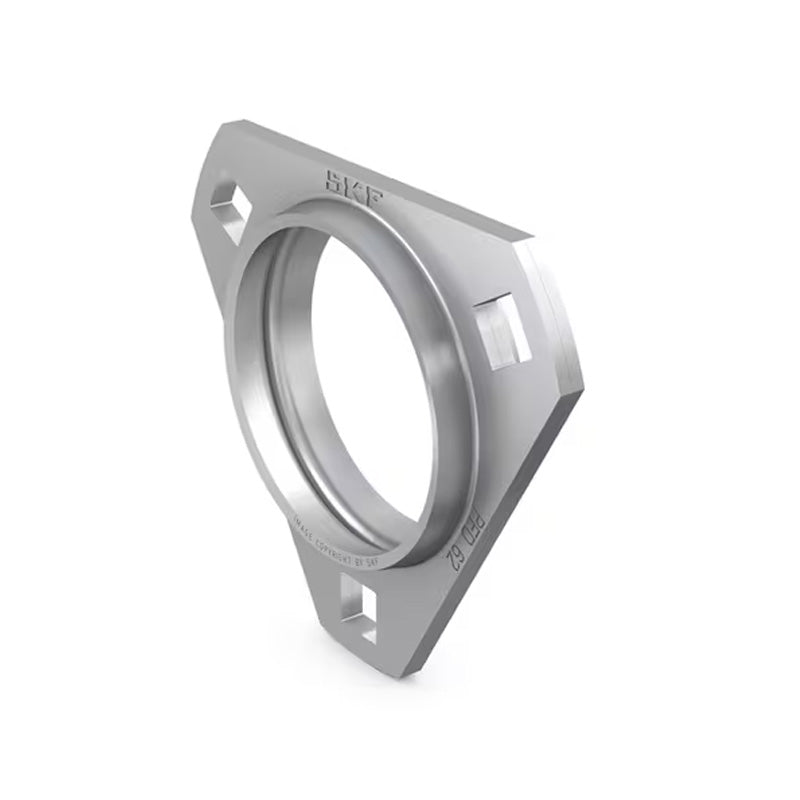

SKF PFD17RM Pressed Steel Triangular Housing with Grub Screw 17mm Insert
SKF PFD17RM Pressed Steel Triangular Housing with Grub Screw 17mm Insert
Out of stock
Description
Description
| SKF Triangular Flanged Y-bearing Units with Pressed Steel Housing and Grub Screws: These units are designed for simple applications with limited loads and speeds. These triangular flanged housings are made of pressed steel and have three square holes for attachment bolts. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Style:
- PFD
- Bolt Hole Centres:
- 63mm
Technical
Technical

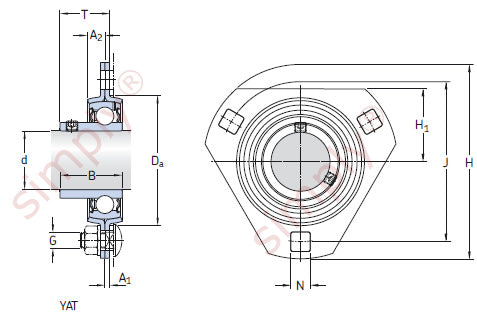

| d | 17mm |
|---|---|
| A1 | 2mm |
| A2 | 7mm |
| B | 22.1mm |
| Da | 49mm |
| H | 81mm |
| H1/L | 29mm |
| J | 63mm |
| N | 7.1mm |
| G | 6mm |
| T | 17.9mm |
| Static load Cr | 4.75 kN |
| Dynamic load Cor | 9.56 kN |
| Fatigue load limit Pu | 0.2 kN |
| Permissible housing load | 2.5 kN |
| Weight | 0.16 kg |
