SKU: PF10-00-502-DURB

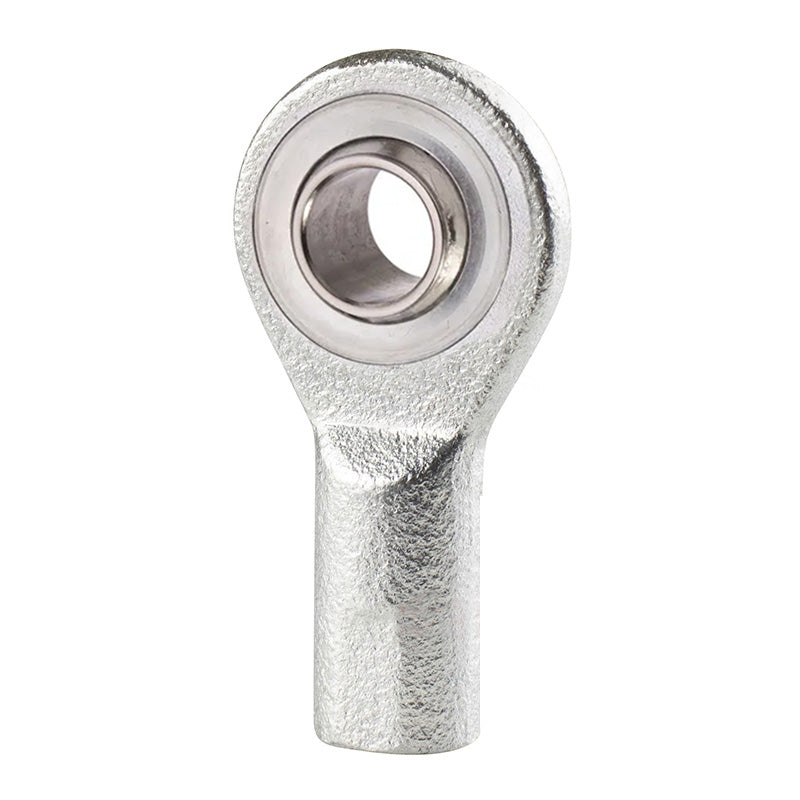

Durbal PF10-00-502 Left Hand Metric Steel Female Rod End M8 Thread
Durbal PF10-00-502 Left Hand Metric Steel Female Rod End M8 Thread
Out of stock
Description
Description
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M8
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 10mm
Technical
Technical
| Thread Direction | -502 (Left) |
|---|---|
| d | 10mm |
| G (Thread) | M8 |
| B | 13mm |
| C1 | 9mm |
| h1 | 38mm |
| d1 | 13mm |
| d2 | 30mm |
| d3 | 15mm |
| l3 | 17mm |
| l4 | 53mm |
| l7 | 15mm |
| W | 13mm |
| tilt angle α | 7 deg |
| weight | 0.063kg |
| rotational speed limit n max | 1.225 (min-1) |
| axial factor | 1.9 Y |
| axial factor | 1.81 Y0 |
| basic load rating dyn C | 2.6 kN |
| basic load rating stat Co | 1 kN |
| radial clearance CN | 10-30 µm |
