SKU: PCJTY60-XL-N-INA
INA PCJTY60XLN Two Bolt Cast Iron Oval Housing with Grub Screw Insert 60mm Bore
INA PCJTY60XLN Two Bolt Cast Iron Oval Housing with Grub Screw Insert 60mm Bore
Regular price
CHF 132.00
ex VAT
Regular price
Sale price
CHF 132.00
ex VAT
In stock
Price Break
4+
CHF 105.31
9+
CHF 99.40
19+
CHF 98.21
29+
CHF 97.03
39+
CHF 95.85
49+
CHF 94.66
59+
CHF 88.75
69+
CHF 87.56
79+
CHF 86.38
89+
CHF 85.20
99+
CHF 82.83
Quantity
Couldn't load pickup availability
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, grub screw fixing, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 60mm
- Style:
- PCJTY
- Bolt Hole Centres:
- 202mm

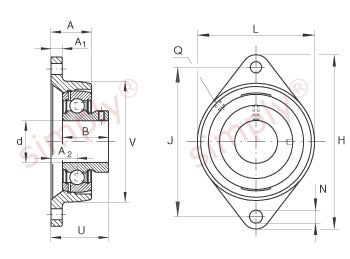

Technical
Technical
| d | 60mm |
|---|---|
| H | 238mm |
| U | 68mm |
| A | 46mm |
| A1 | 16mm |
| A2 | 34mm |
| B | 47mm |
| J | 202mm |
| L | 138mm |
| N | 18mm |
| Q | M6mm |
| V | 138mm |
| Mass | 2.92 kg |
| Basic dynamic load rating Cr | 56000 N |
| Basic static load rating Cor | 36000 N |
| Designation of housing | CJT12 |
| Designation of bearing | GAY60-XL-NPP-B |
| Bearing end cap, closed design (to be ordered separately) | KASK12 |
