SKU: PCJT1-1/8

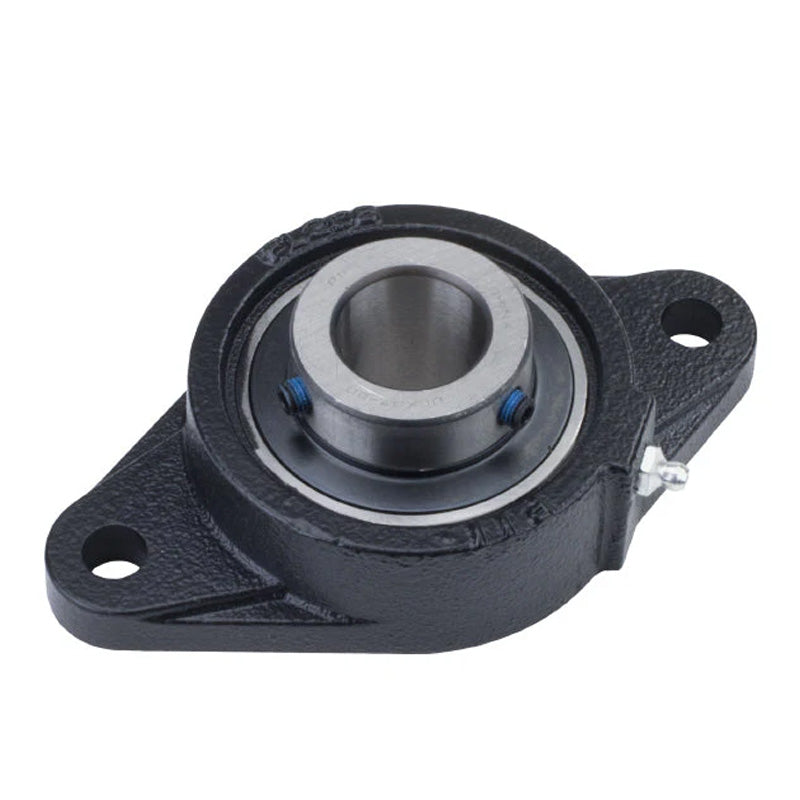

INA PCJT1-1/8 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 1-1/8 inch Bore
INA PCJT1-1/8 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 1-1/8 inch Bore
Out of stock
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- PCJT
- Bolt Hole Centres:
- 116.51mm = 4.587 inch
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| d | 28.6mm |
| H | 5.591 inch |
| H | 142mm |
| U | 1.843 inch |
| U | 46.7mm |
| A | 1.28 inch |
| A1 | 0.512 inch |
| A2 | 0.787 inch |
| B1 | 1.409 inch |
| d3 | 1.732 inch |
| J | 4.587 inch |
| L | 3.169 inch |
| N | 0.453 inch |
| Q | 1/8 NPT |
| V | 3.169 inch |
| Mass | 1.98 lbs |
| Basic dynamic load rating Cr | 4350 lbf |
| Basic dynamic load rating Cr | 20700 N |
| Basic static load rating Cor | 2550 lbf |
| Basic static load rating Cor | 11300 N |
| Designation of housing | GG.CJT06 |
| Designation of bearing | GRA102-NPP-B-AS2/V |
