SKU: PBS-DS-06B-13

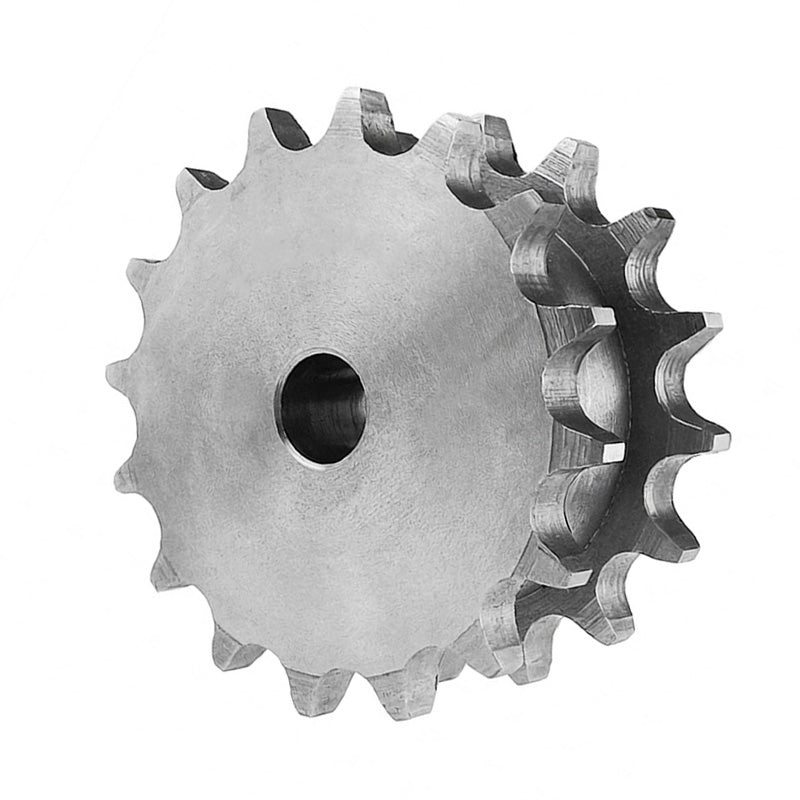

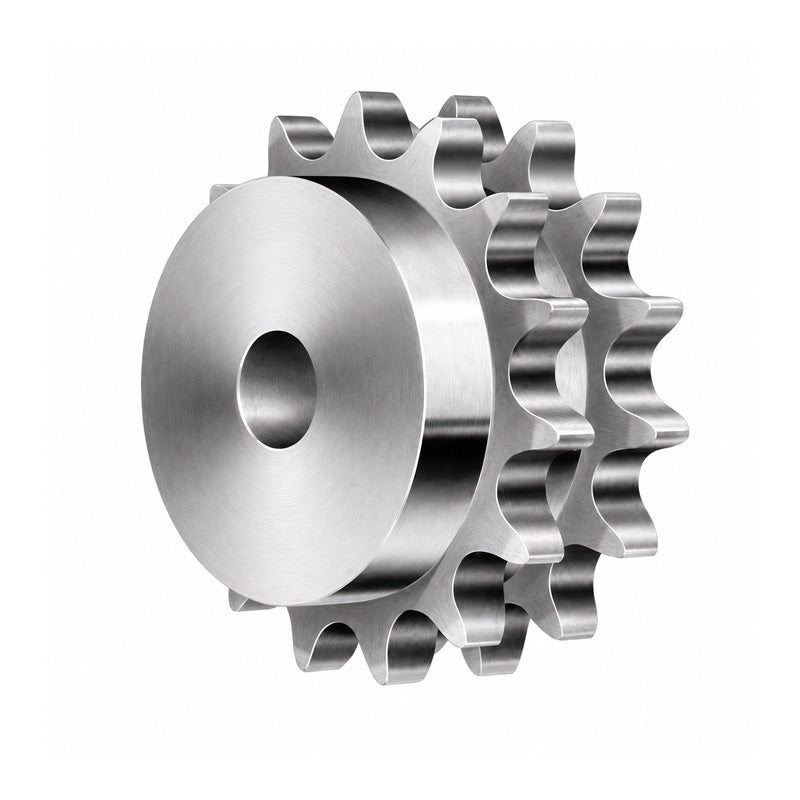

13 Tooth 06B Pilot Bore Double Simplex Sprocket for 3/8 inch Pitch Chain
- Regular price
- CHF 8.00 ex VAT
- Sale price
- CHF 8.00
- Regular price
-
In stock
Quantity Price Breaks
5
CHF 7.12
9
CHF 6.72
19
CHF 6.64
29
CHF 6.56
49
CHF 6.48
74
CHF 6.40
99
CHF 6.00
199
CHF 5.92
249
CHF 5.84
499
CHF 5.76
999
CHF 5.60
SKU:
PBS-DS-06B-13
13 Tooth 06B Pilot Bore Double Simplex Sprocket for 3/8 inch Pitch Chain
- Regular price
- CHF 8.00 ex VAT
- Sale price
- CHF 8.00
- Regular price
-
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

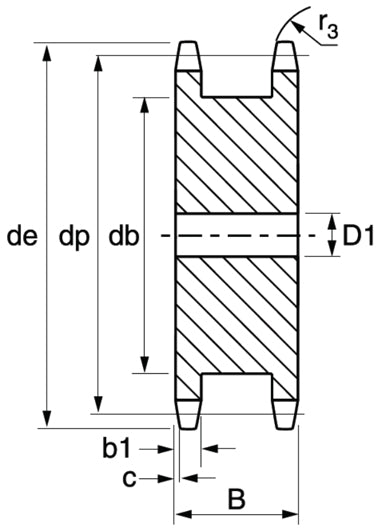

Technical
| No. of Teeth | = | 13 |
| Pitch Diameter dp | = | 39.8mm |
| Outer Diameter de | = | 43.45mm |
| Hub Diameter N | = | 28mm |
| Chamfer C | = | 23.5mm |
| Tooth Radius r3 | = | 1mm |
| Tooth Width b1 | = | 10mm |
| Stock Bore D1 | = | 10mm |
| Weight | = | 5.3 kg |
