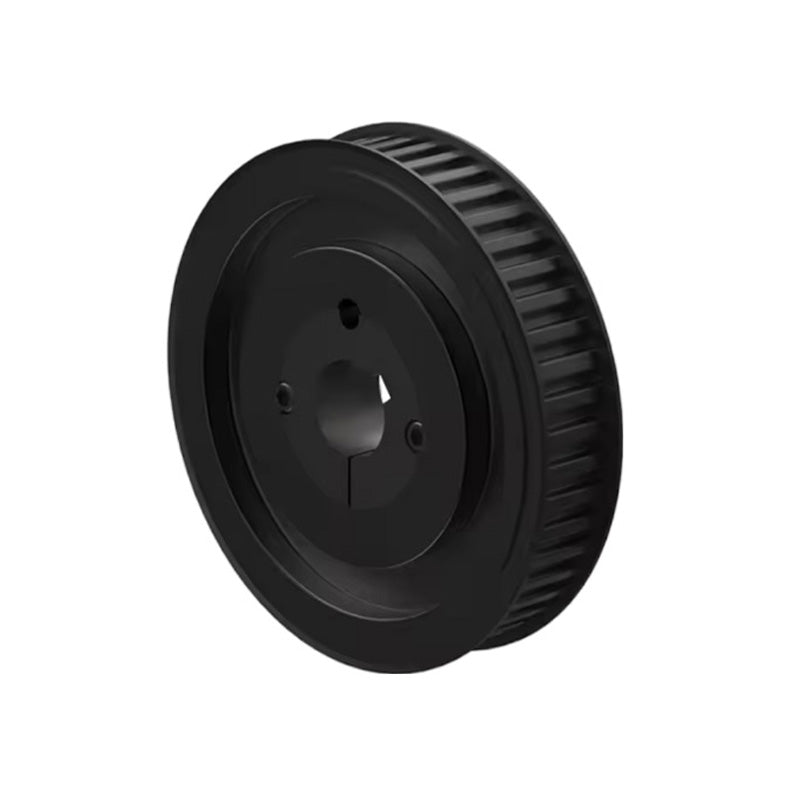

Dunlop 48-H-200F Belt Number H 48 Teeth Imperial Cast Iron Pilot Bore Timing Pulley With Flanges (Bush not Incl.)

Imperial Pilot Bore Timing Pulley: Imperial timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.

Brand / Quality:

Dunlop - Good Quality

Bore:

80mm

Outside Diameter:

192.67mm

Width:

59.5mm

Material:

Cast Iron

Belt Number:

H200

Number of Teeth:

48

Pitch Circle Diameter:

194.04mm
