SKU: NUP218ECP-SKF
SKF NUP218ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 90x160x30mm
SKF NUP218ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 90x160x30mm
Regular price
CHF 278.00
ex VAT
Regular price
Sale price
CHF 278.00
ex VAT
In stock
Price Break
10+
CHF 222.08
19+
CHF 209.60
29+
CHF 207.11
39+
CHF 204.61
49+
CHF 202.12
74+
CHF 199.62
99+
CHF 187.14
199+
CHF 184.65
249+
CHF 182.15
499+
CHF 179.66
999+
CHF 174.67
Quantity
Couldn't load pickup availability
Description
Description
|

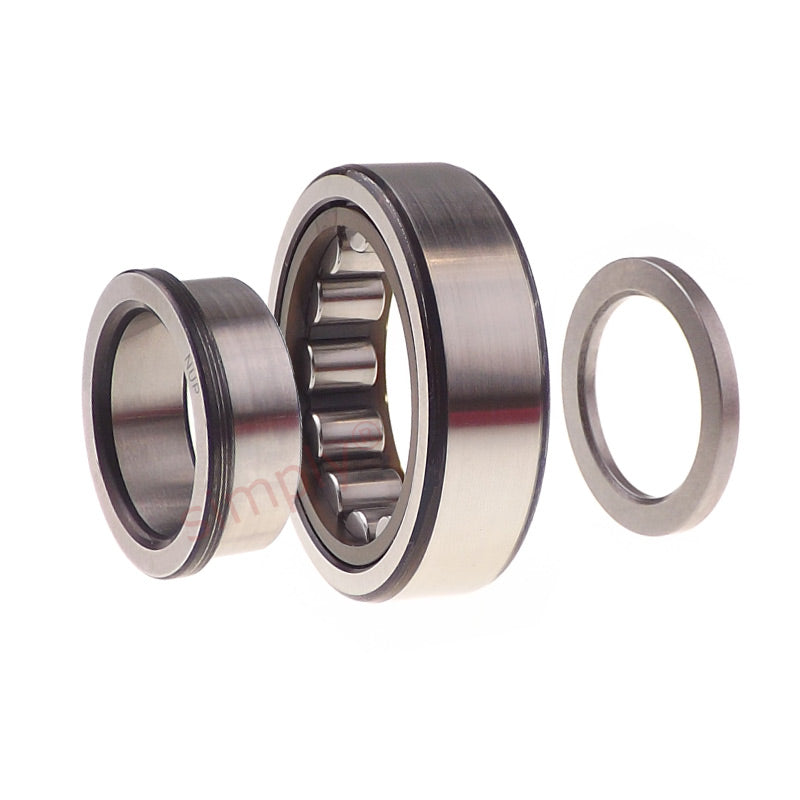

SKF NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 160mm
- Width:
- 30mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 90mm |
|---|---|
| D | 160mm |
| B | 30mm |
| Dynamic load C | 208 kN |
| Static load Co | 220 kN |
| Fatigue load limit Pu | 27 kN |
| Reference speed | 4500 rpm |
| Limiting speed | 5000 rpm |
| Weight | 2.45 kg |
| Alt cage | M.ML |
| d1 | 114mm |
| D1 | 140mm |
| F,E | 107mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| da min | 101mm |
| db | 117mm |
| Da max | 149mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
