SKU: NP75-RHP
RHP NP75 Two Bolt Cast Iron Pillow Block and 75mm Bore Grub Screw Full Width Insert
RHP NP75 Two Bolt Cast Iron Pillow Block and 75mm Bore Grub Screw Full Width Insert
Regular price
CHF 269.00
ex VAT
Regular price
Sale price
CHF 269.00
ex VAT
In stock
Price Break
10+
CHF 214.56
20+
CHF 202.51
30+
CHF 200.10
40+
CHF 197.69
50+
CHF 195.28
75+
CHF 192.86
100+
CHF 180.81
200+
CHF 178.40
250+
CHF 175.99
500+
CHF 173.58
1000+
CHF 168.76
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 75mm
- Style:
- NP
- Bolt Hole Centres:
- 206-228mm
Technical

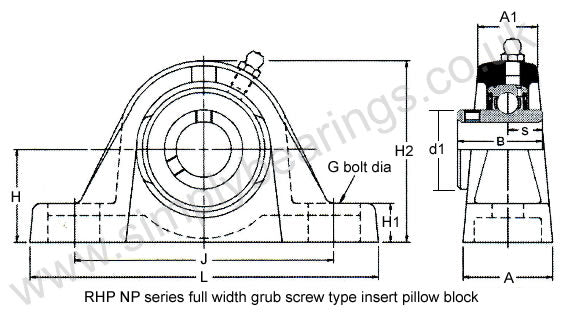

Technical
| Bore | 75mm |
|---|---|
| L | 275mm |
| H | 82.6mm |
| H1 | 28mm |
| H2 | 164mm |
| J max | 228mm |
| J min | 206mm |
| G | 24mm |
| A | 74mm |
| A1 | 48mm |
| B | 77.77mm |
| s | 33.37mm |
| d1 | 92mm |
| Dynamic load Cr | 66000 N |
| Static load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-75G+insonly">1075-75G Click Here</a> |
| Casting group | 12 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
