SKU: NP1.1/4AR-RHP

RHP NP1-1/4AR Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Grub Screw Flat Back Insert

RHP NP1-1/4AR Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Grub Screw Flat Back Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

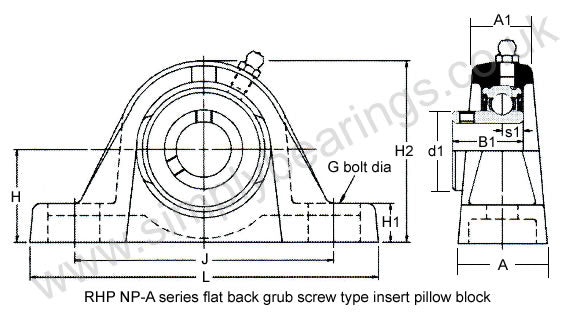

Bore 1-1/4 inch
L 6.319 inch
H 1.689 inch
H1 0.697 inch
H2 3.256 inch
J max 5.098 inch
J min 4.272 inch
G 0.5 inch
A 1.634 inch
A1 1.083 inch
B1 1.229 inch
s1 0.356 inch
d1 1.575 inch
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.3 kg
Insert <a href="advanced_search_result.php?keywords=1230-1-1/4AG+insonly">1230-1-1/4AG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
