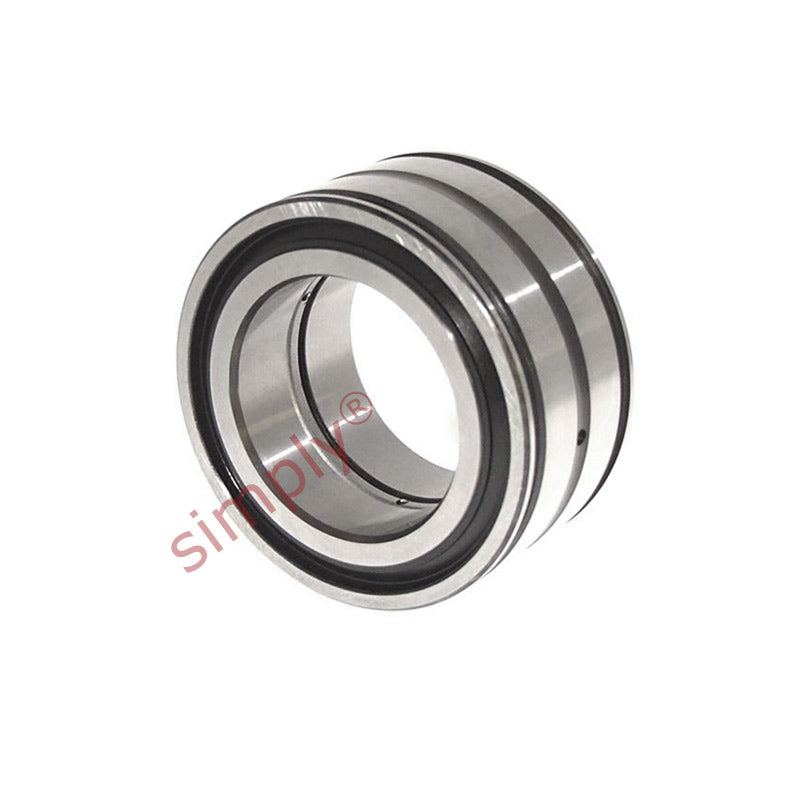

• SKF NNF5034ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 170x260x122mm
1 1

SKU: NNF5034ADA-2LSV-SKF

SKF NNF5034ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 170x260x122mm

SKF NNF5034ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 170x260x122mm
CHF 3,159.00 ex VAT
CHF 3,159.00 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SKF - High Quality
Inside Diameter:
170mm
Outside Diameter:
260mm
Width:
122mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 170mm
D 260mm
B 122mm
C 121mm
Dynamic load C 1010 kN
Static load Co 1800 kN
Fatigue load limit Pu 193 kN
Limiting speed 480 rpm
Weight 22.5 kg
d1 203mm
D1 254mm
E 239mm
C1+0.2 107.2mm
C2 6.9mm
b 5.2mm
b1 7mm
K 4mm
r min 2mm
r3r4 min 0.6mm
da min 177mm
das 197mm
Da max 255mm
Ca1 - 0.2 99mm
Ca2 - 0.2 97mm
ra max 2mm
rb max 0.6mm
Snap ring SW260
Din 471 260x5
