SKU: NNF.5016.2LS.VC5.MB

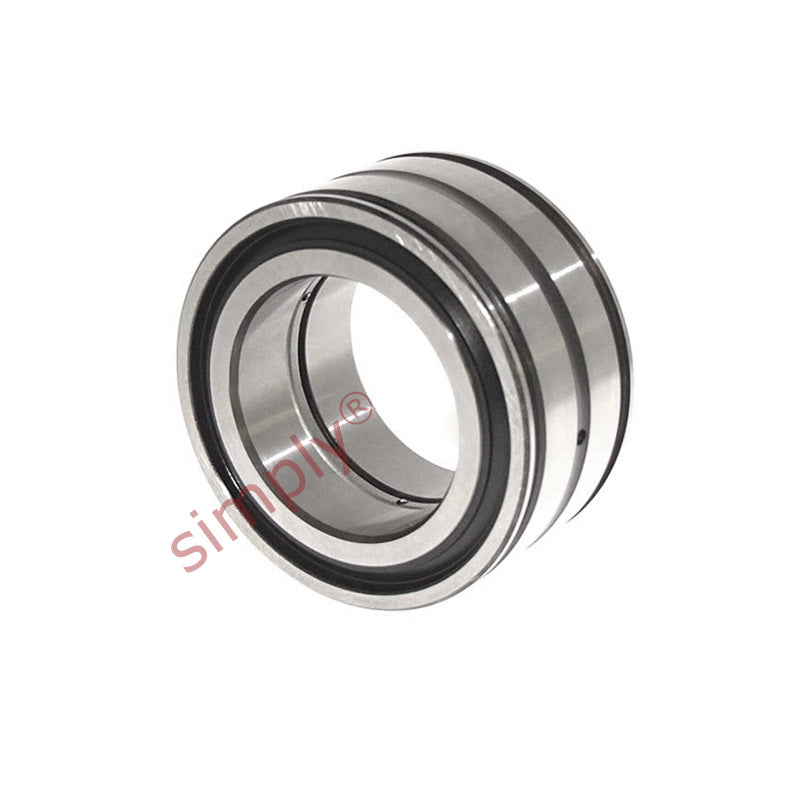

NNF50162LSVC5 Full Complement Cylindrical Roller Bearing 80x125x60mm

Name: NNF50162LSVC5 Full Complement Cylindrical Roller Bearing 80x125x60mm
Brand: Major Brand
SKU: NNF.5016.2LS.VC5.MB
Price: 353.00 CHF
Availability: InStock

CHF 353.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 281.95

19+ CHF 266.11

29+ CHF 262.94

39+ CHF 259.77

49+ CHF 256.60

74+ CHF 253.43

99+ CHF 237.59

199+ CHF 234.43

249+ CHF 231.26

499+ CHF 228.09

999+ CHF 221.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 80mm
Outside Diameter:: 125mm
Width:: 60mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	80mm
D	125mm
B	60mm
Weight	2.7kg
