SKU: NNF.5005.2LS.V.MB

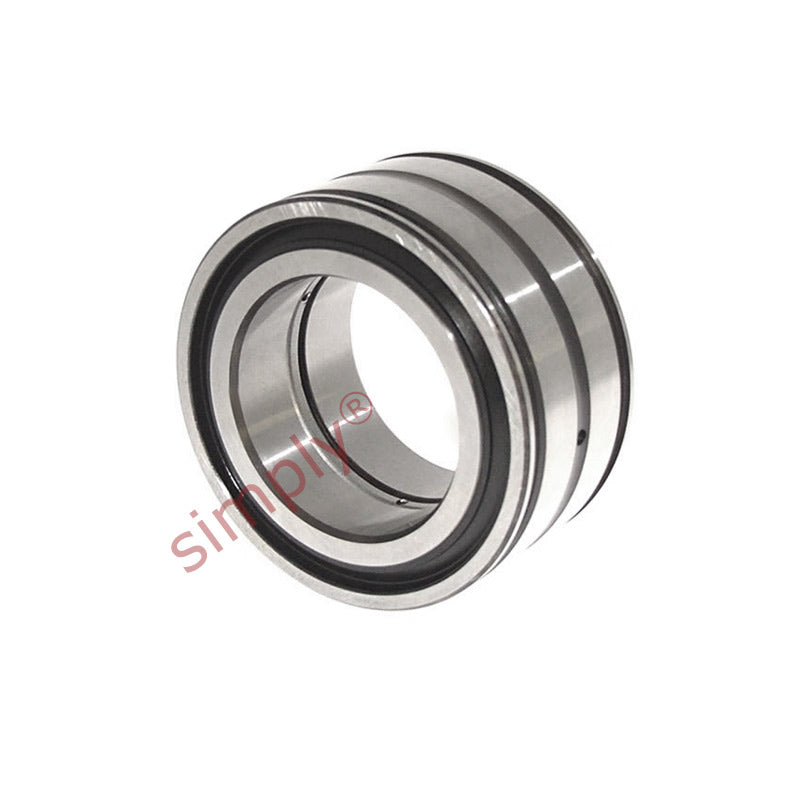

NNF50052LSV Full Complement Cylindrical Roller Bearing 25x47x30mm

Name: NNF50052LSV Full Complement Cylindrical Roller Bearing 25x47x30mm
Brand: Major Brand
SKU: NNF.5005.2LS.V.MB
Price: 109.00 CHF
Availability: InStock

CHF 109.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 86.51

19+ CHF 81.65

29+ CHF 80.68

39+ CHF 79.70

49+ CHF 78.73

74+ CHF 77.76

99+ CHF 72.90

199+ CHF 71.93

249+ CHF 70.96

499+ CHF 69.98

999+ CHF 68.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 25mm
Outside Diameter:: 47mm
Width:: 30mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	25mm
D	47mm
B	30mm
Weight	0.23kg
