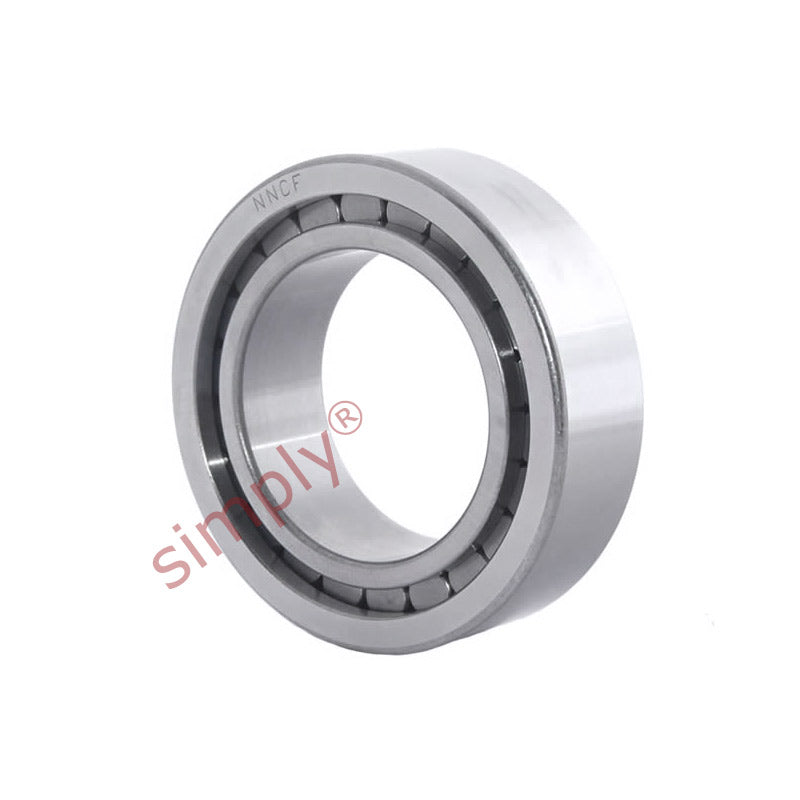

SKF NNCF5030CV Double Row Full Complement Cylindrical Roller Bearing 150x225x100mm

Name: SKF NNCF5030CV Double Row Full Complement Cylindrical Roller Bearing 150x225x100mm
Brand: SKF
SKU: NNCF5030CV-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction.
Benefits: Tolerate axial load in one direction, none separable construction

Brand / Quality:: SKF - High Quality
Inside Diameter:: 150mm
Outside Diameter:: 225mm
Width:: 100mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	150mm
D	225mm
B	100mm
Dynamic load C	842 Kn
Static load Co	1430 Kn
Fatigue load limit Pu	160 Kn
Reference speed	1300 rpm
Limiting speed	1700 rpm
Weight	13.3 kg
d1	170mm
D1	198mm
E	206.8mm
b1	7mm
r1r2 min	2mm
S	6mm
da min	160mm
das	160mm
Da max	215mm
Ra max	2mm
