SKU: NNCF5010CV-SKF

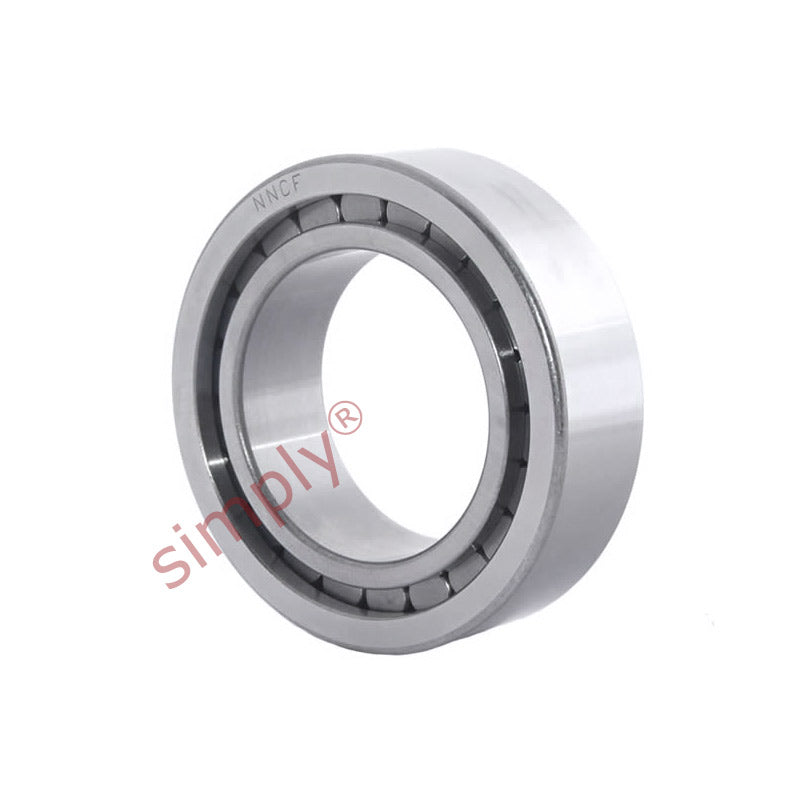

SKF NNCF5010CV Double Row Full Complement Cylindrical Roller Bearing 50x80x40mm
SKF NNCF5010CV Double Row Full Complement Cylindrical Roller Bearing 50x80x40mm
Out of stock
Share this product
Description
Description
|
SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 80mm |
| B | 40mm |
| Dynamic load C | 142 Kn |
| Static load Co | 196 Kn |
| Fatigue load limit Pu | 23.6 Kn |
| Reference speed | 4000 rpm |
| Limiting speed | 5000 rpm |
| Weight | 0.76 kg |
| d1 | 59.1mm |
| D1 | 67.6mm |
| E | 72.23mm |
| b1 | 4.5mm |
| K | 3mm |
| r1r2 min | 1mm |
| S | 1.5mm |
| da min | 54.6mm |
| das | 54.6mm |
| Da max | 75.4mm |
| Ra max | 1mm |
