SKU: NNCF5005CV-SKF

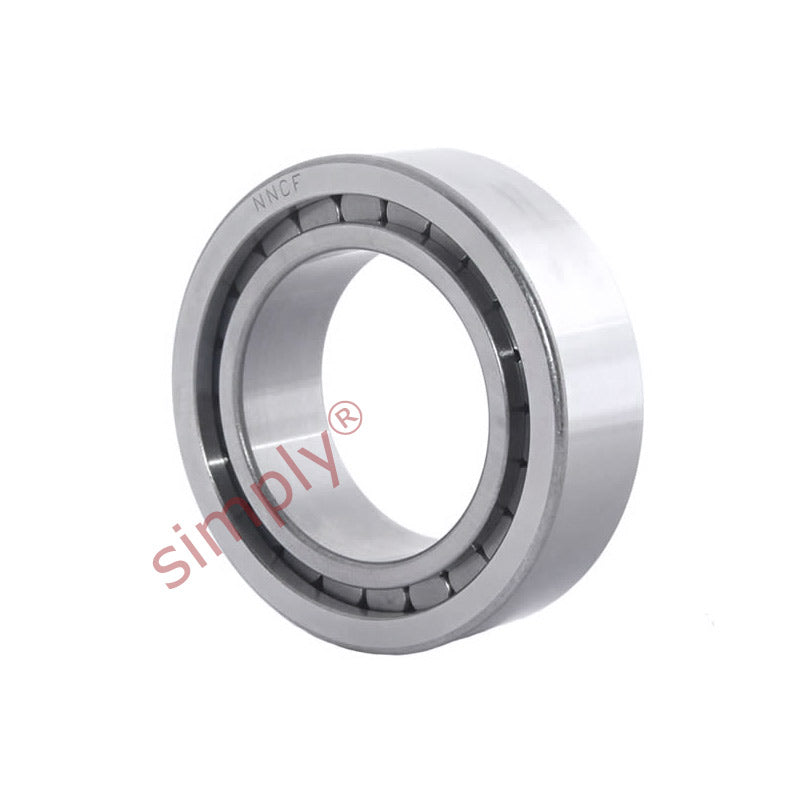

SKF NNCF5005CV Double Row Full Complement Cylindrical Roller Bearing 25x47x30mm
SKF NNCF5005CV Double Row Full Complement Cylindrical Roller Bearing 25x47x30mm
Out of stock
Share this product
Description
Description
|
SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 30mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 30mm |
| Dynamic load C | 59.4 Kn |
| Static load Co | 71 Kn |
| Fatigue load limit Pu | 7.65 Kn |
| Reference speed | 7000 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.23 kg |
| d1 | 34.5mm |
| D1 | 38.9mm |
| E | 42.51mm |
| b1 | 4.5mm |
| K | 3mm |
| r1r2 min | 0.6mm |
| S | 1mm |
| da min | 28.2mm |
| das | 28.2mm |
| Da max | 43.8mm |
| Ra max | 0.6mm |
