SKU: NNC4848CV-SKF

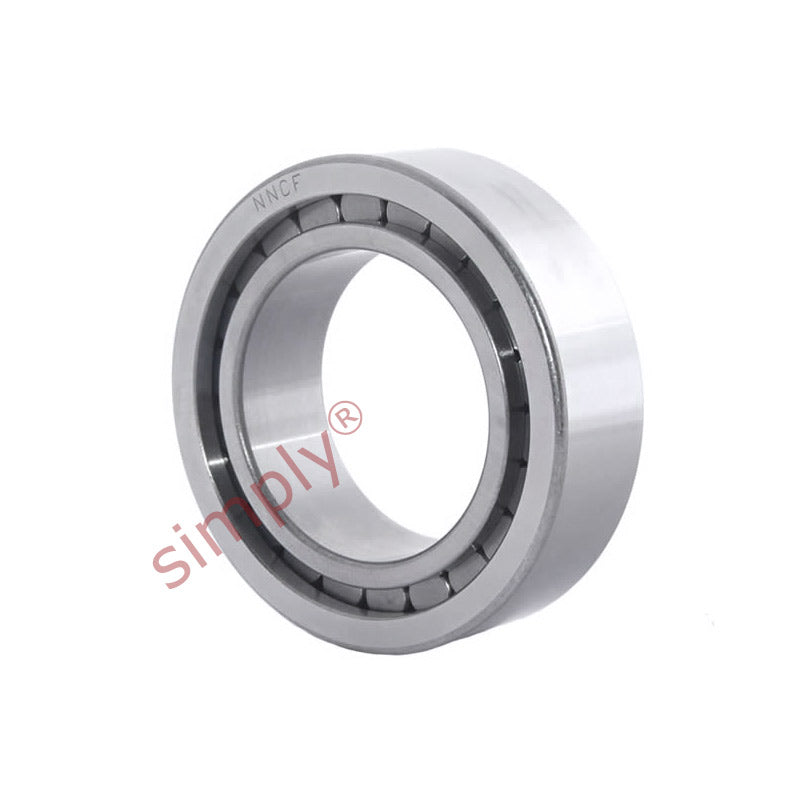

SKF NNC4848CV Double Row Full Complement Cylindrical Roller Bearing 240x300x60mm

Name: SKF NNC4848CV Double Row Full Complement Cylindrical Roller Bearing 240x300x60mm
Brand: SKF
SKU: NNC4848CV-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction.
Benefits: Tolerate axial load in one direction, none separable construction

Brand / Quality:: SKF - High Quality
Inside Diameter:: 240mm
Outside Diameter:: 300mm
Width:: 60mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	240mm
D	300mm
B	60mm
Dynamic load C	539 Kn
Static load Co	1290 Kn
Fatigue load limit Pu	125 Kn
Reference speed	900 rpm
Limiting speed	1100 rpm
Weight	10 kg
d1	261mm
D1	275mm
E	281.9mm
b1	8mm
K	4mm
r1r2 min	2mm
da min	250mm
das	257mm
Da max	290mm
Ra max	2mm
