SKU: NKX12Z-EU

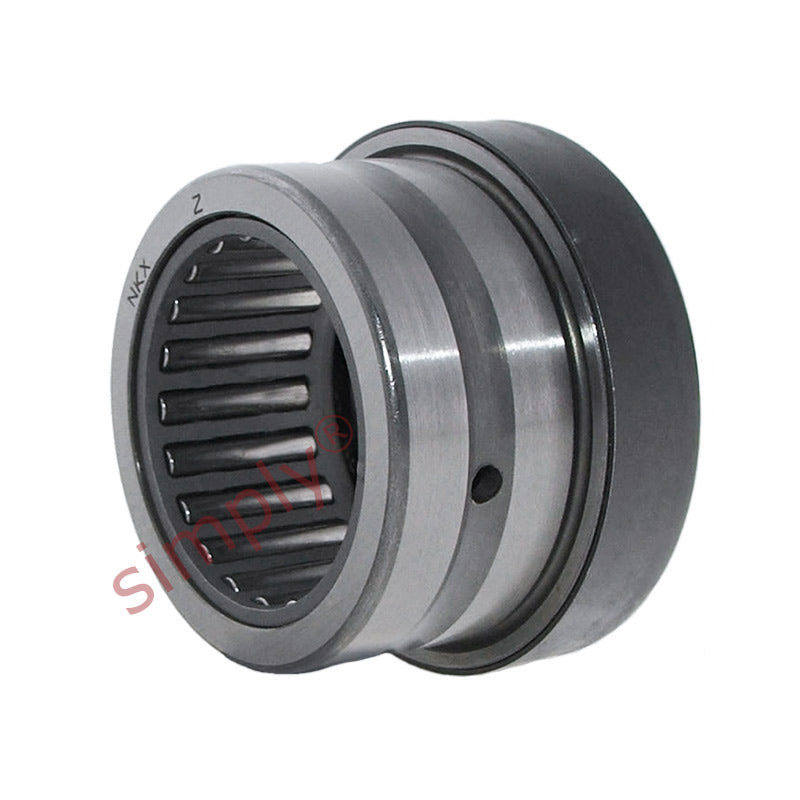

NKX12Z Budget Needle / Ball Thrust Bearing with Closure Ring/Cover 12x21x23mm
NKX12Z Budget Needle / Ball Thrust Bearing with Closure Ring/Cover 12x21x23mm
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
In stock
Price Break
10+
CHF 19.77
19+
CHF 18.65
29+
CHF 18.43
39+
CHF 18.21
49+
CHF 17.99
74+
CHF 17.77
99+
CHF 16.66
199+
CHF 16.43
249+
CHF 16.21
499+
CHF 15.99
999+
CHF 15.55
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Budget Needle Roller / Ball Thrust Combination: Of a non separable design has a cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to grease lubrication as the cover acts to retain the lubricant. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 21mm
- Width:
- 23mm
- Seals / Shields:
- Metal Shields
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 21mm |
| C | 23mm |
| Radial dynamic load | 6160 N |
| Radial static load | 8650 N |
| Axial dynamic load | 10400 N |
| Axial static load | 16600 N |
| Fatigue load limit radial Pu | 980 N |
| Fatigue load limit axial Pu | 620 N |
| Min load factor | 1.4 |
| Speed in grease | 6700 rpm |
| Speed in oil | 9000 rpm |
| C1 | 9mm |
| C2 | 6.5mm |
| d | 12mm |
| d1 | 21.7mm |
| D2 | 27.2mm |
| r1r2 min | 0.3mm |
| da min | 21mm |
| db max | 21.7mm |
| ra max | 0.3mm |
| rb max | 0.3mm |
| di | 9mm |
| F | 12mm |
| Bi | 16mm |
| Inner ring | IR9x12x16 |
| Weight | 40 g |
