SKU: NK60/25-MB

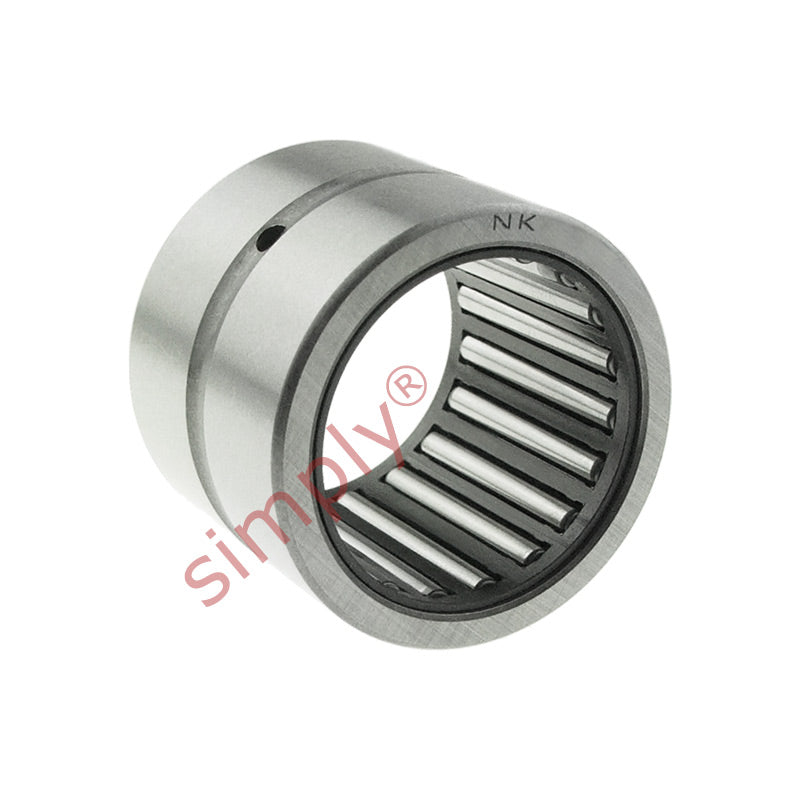

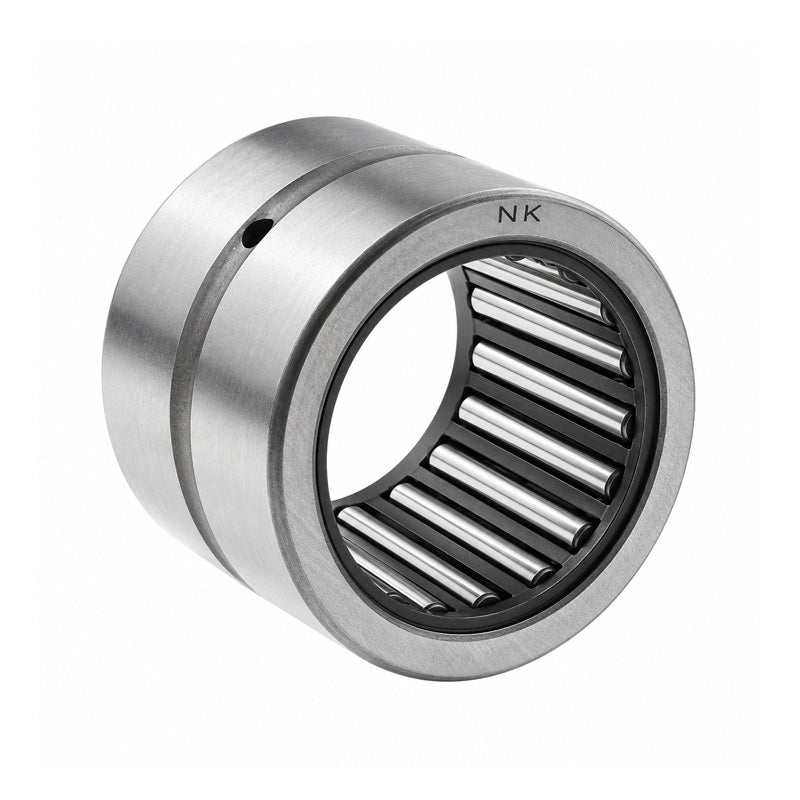

Major Brand NK60/25 Needle Roller Bearing With Flanges without Shaft Sleeve 60x72x25mm

Name: Major Brand NK60/25 Needle Roller Bearing With Flanges without Shaft Sleeve 60x72x25mm
Brand: Major Brand
SKU: NK60/25-MB
Price: 56.00 CHF
Availability: InStock

CHF 56.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 44.69

19+ CHF 42.18

29+ CHF 41.68

39+ CHF 41.18

49+ CHF 40.68

74+ CHF 40.17

99+ CHF 37.66

199+ CHF 37.16

249+ CHF 36.66

499+ CHF 36.16

999+ CHF 35.15

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads.
Benefits: Economical replacement, needles are retained within machined flange of the outer race.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 60mm
Outside Diameter:: 72mm
Width:: 25mm

Technical

Fw	60mm
D	72mm
C	25mm
Dynamic load	41800 N
Static load	96500 N
Fatigue load limit Pu	12200 N
Speed in grease	4800 rpm
Speed in oil	6700 rpm
r1r2	0.6mm
Da max	68mm
ra max	0.6mm
Weight	190 g
