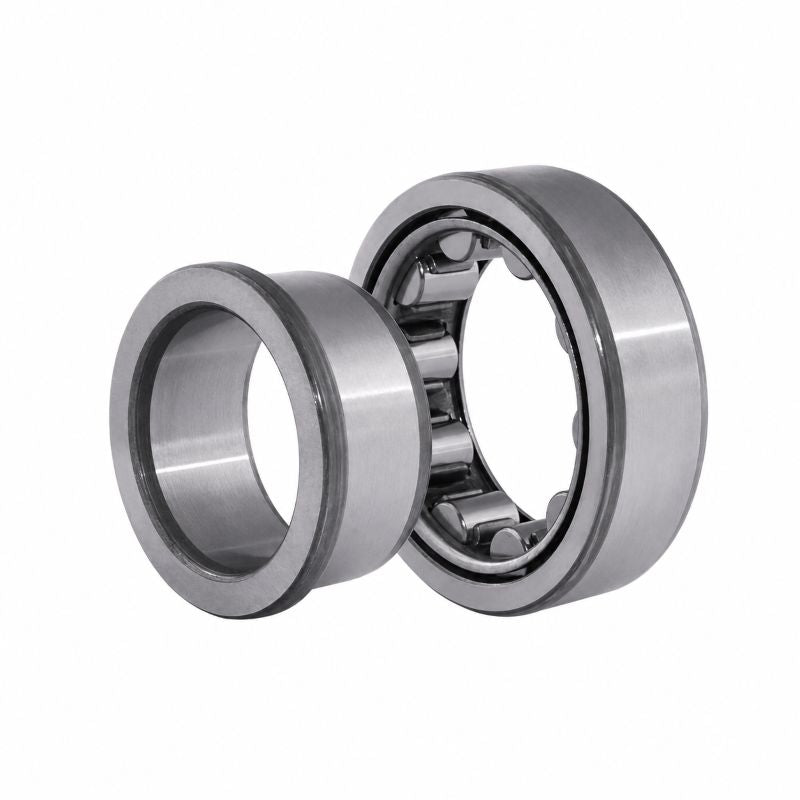

• NJ313 Budget Single Row Cylindrical Roller Bearing 65x140x33mm
1 1

SKU: NJ313-EU

NJ313 Budget Single Row Cylindrical Roller Bearing 65x140x33mm

NJ313 Budget Single Row Cylindrical Roller Bearing 65x140x33mm
CHF 100.00 ex VAT
CHF 100.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 79.57
19+ CHF 75.10
29+ CHF 74.21
39+ CHF 73.31
49+ CHF 72.42
74+ CHF 71.53
99+ CHF 67.06
199+ CHF 66.16
249+ CHF 65.27
499+ CHF 64.37
999+ CHF 62.59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NJ_CY1_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
65mm
Outside Diameter:
140mm
Width:
33mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 65mm
D 140mm
B 33mm
Dynamic load C 212 kN
Static load Co 196 kN
Fatigue load limit Pu 25.5 kN
Reference speed 5300 rpm
Limiting speed 6000 rpm
Weight 2.3 kg
Cage options J.M.ML
d1 90.5mm
D1 119mm
F, E 82.5mm
r1r2 min 2.1mm
r3r4 min 2.1mm
s 2.2mm
da min 77mm
da max 80mm
db min 93mm
Da max 128mm
ra max 2mm
rb max 2mm
kr 0.15
Angle ring HJ313EC
Angle ring weight 0.27kg
B1 10mm
B2 15.5mm
