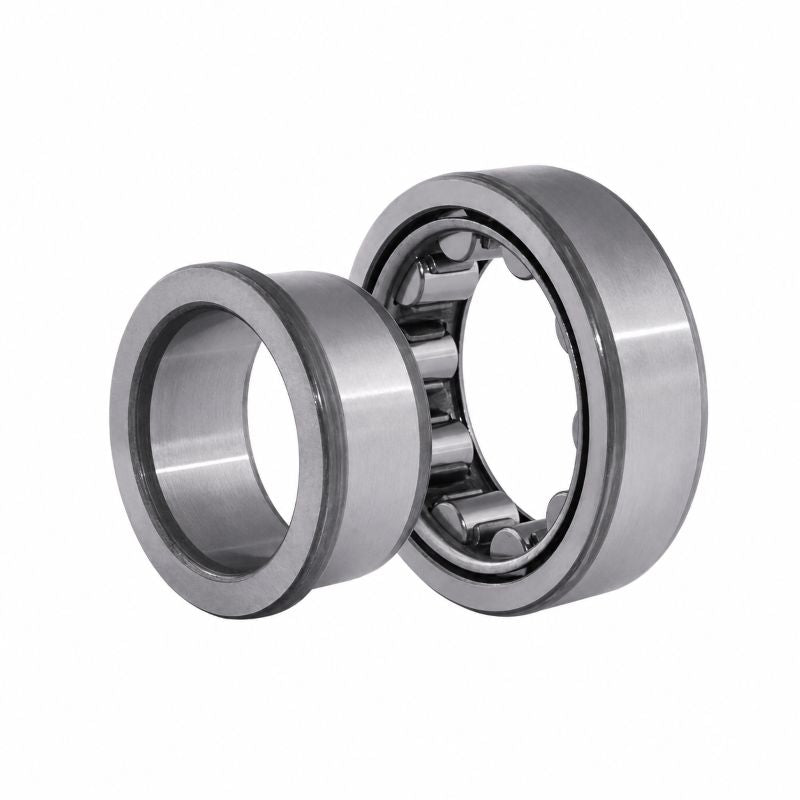

• SKF NJ2320ECMLC4VQ015 Single Row Cylindrical Roller Bearing with Brass Cage 100x215x73mm
1 1

SKU: NJ2320ECML/C4VQ015-SKF

SKF NJ2320ECMLC4VQ015 Single Row Cylindrical Roller Bearing with Brass Cage 100x215x73mm

SKF NJ2320ECMLC4VQ015 Single Row Cylindrical Roller Bearing with Brass Cage 100x215x73mm
CHF 1,330.00 ex VAT
CHF 1,330.00 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SKF - High Quality
Inside Diameter:
100mm
Outside Diameter:
215mm
Width:
73mm
Seals / Shields:
None
Clearance:
C4
Technical
d 100mm
D 215mm
B 73mm
Dynamic load C 670 kN
Static load Co 735 kN
Fatigue load limit Pu 85 kN
Reference speed 3200 rpm
Limiting speed 3800 rpm
Weight 12.2 kg
Alt cage J.ML
d1 139mm
D1 182mm
F,E 127.5mm
r1r2 min 3mm
r3r4 min 3mm
S 5.9mm
da min 114mm
da max 124mm
db 142mm
Da max 201mm
ra max 2.5mm
rb max 2.5mm
kr 0.25
Angle ring HJ2320EC
Angle ring weight 0.93 kg
B1 13mm
B2 23.5mm
