SKU: NJ2320-E-TVP2-C3+HJ2320-E

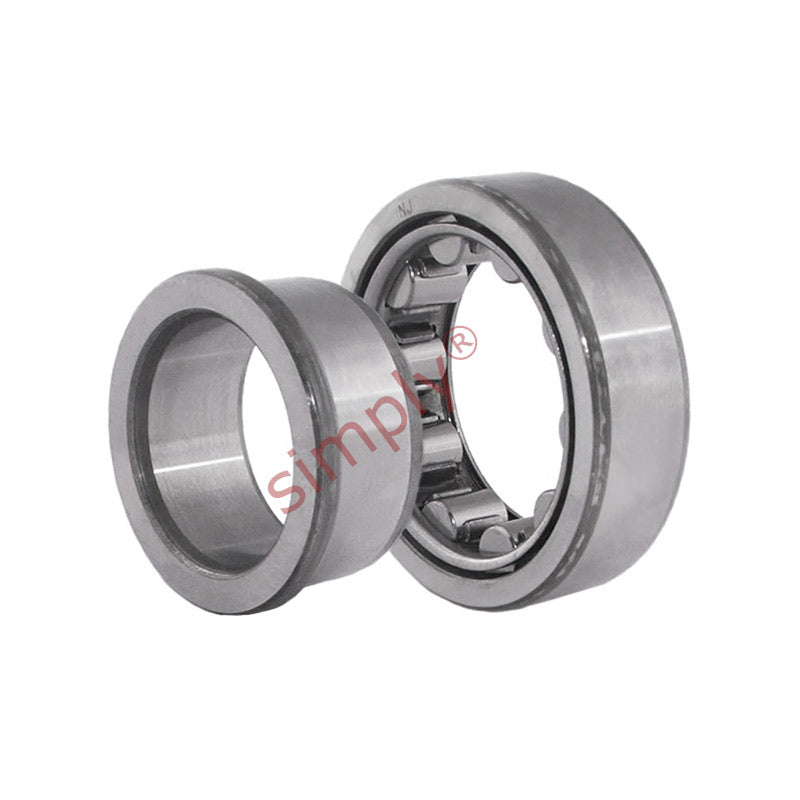

NJ2320-E-TVP2-C3 + HJ2320-E X-life Cylindrical Roller Bearing with Cage and L-section Ring 100x215x73mm
NJ2320-E-TVP2-C3 + HJ2320-E X-life Cylindrical Roller Bearing with Cage and L-section Ring 100x215x73mm
Out of stock
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 215mm
- Width:
- 73mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 100 |
|---|---|
| D | 215 |
| B | 73 |
| r min | 3 |
| r1 min | 3 |
| E | 191.5 |
| F | 127.5 |
| D1 | 182 |
| d1 | 139.4 |
| B1 | 13 |
| B2 | 23.5 |
| da min | 114 |
| dc min | 143 |
| Da max | 201 |
| ra max | 2.5 |
| Dynamic load | 680000 N |
| Static load | 720000 N |
| Fatigue limit load | 114000 N |
| Limiting speed | 3200 rpm |
| Reference speed | 2550 rpm |
| L-section ring | HJ2320-E |
| Bearing weight | 12.3 kg |
| L-section ring weight | 0.934 kg |
