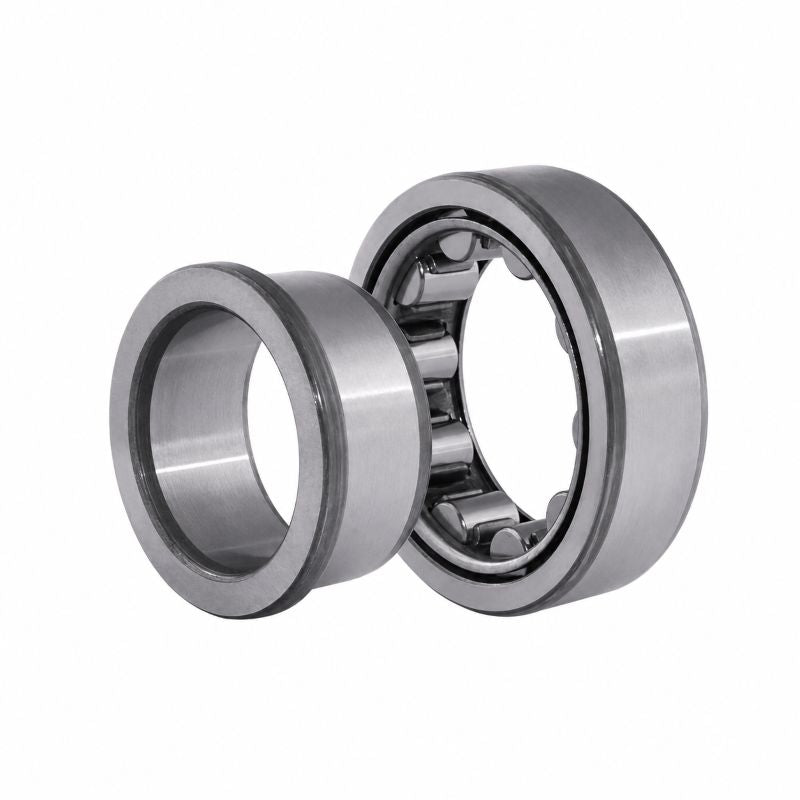

• SKF NJ2318ECMLC4VQ015 Single Row Cylindrical Roller Bearing with Brass Cage 90x190x64mm
1 1

SKU: NJ2318ECML/C4VQ015-SKF

SKF NJ2318ECMLC4VQ015 Single Row Cylindrical Roller Bearing with Brass Cage 90x190x64mm

SKF NJ2318ECMLC4VQ015 Single Row Cylindrical Roller Bearing with Brass Cage 90x190x64mm
CHF 1,027.00 ex VAT
CHF 1,027.00 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SKF - High Quality
Inside Diameter:
90mm
Outside Diameter:
190mm
Width:
64mm
Seals / Shields:
None
Clearance:
C4
Technical
d 90mm
D 190mm
B 64mm
Dynamic load C 500 kN
Static load Co 540 kN
Fatigue load limit Pu 65.5 kN
Reference speed 3800 rpm
Limiting speed 4500 rpm
Weight 8.15 kg
Alt cage J.ML.M
d1 124mm
D1 162mm
F,E 113.5mm
r1r2 min 3mm
r3r4 min 3mm
S 6mm
da min 104mm
da max 110mm
db 127mm
Da max 176mm
ra max 2.5mm
rb max 2.5mm
kr 0.25
Angle ring HJ2318EC
Angle ring weight 0.66 kg
B1 12mm
B2 22mm
