SKU: NCF18900V-SKF
SKF NCF18900V Single Row Cylindrical Roller Bearing 900x1090x85mm
SKF NCF18900V Single Row Cylindrical Roller Bearing 900x1090x85mm
Out of stock
Description
Description
|
SKF NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 900mm
- Outside Diameter:
- 1090mm
- Width:
- 85mm
- Seals / Shields:
- None
- Clearance:
- * Standard

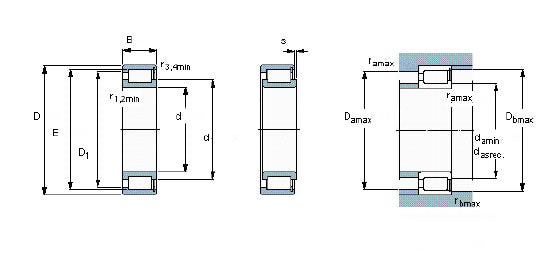

Technical
Technical
| d | 900mm |
|---|---|
| D | 1090mm |
| B | 85mm |
| Dynamic load C | 2380 kN |
| Static load Co | 6000 kN |
| Fatigue load limit Pu | 425 kN |
| Reference speed | 190 rpm |
| Limiting speed | 240 rpm |
| Weight | 160 kg |
| d1 | 966mm |
| D1 | 1029mm |
| E/F | 1044mm |
| r1r2 min | 5mm |
| r3r4 min | 5mm |
| S | 9mm |
| da min | 918mm |
| das | 957mm |
| Da max | 1072mm |
| Db max | 1072mm |
| ra max | 4mm |
| rb max | 4mm |
