SKU: NCF.3020.VC3.MB

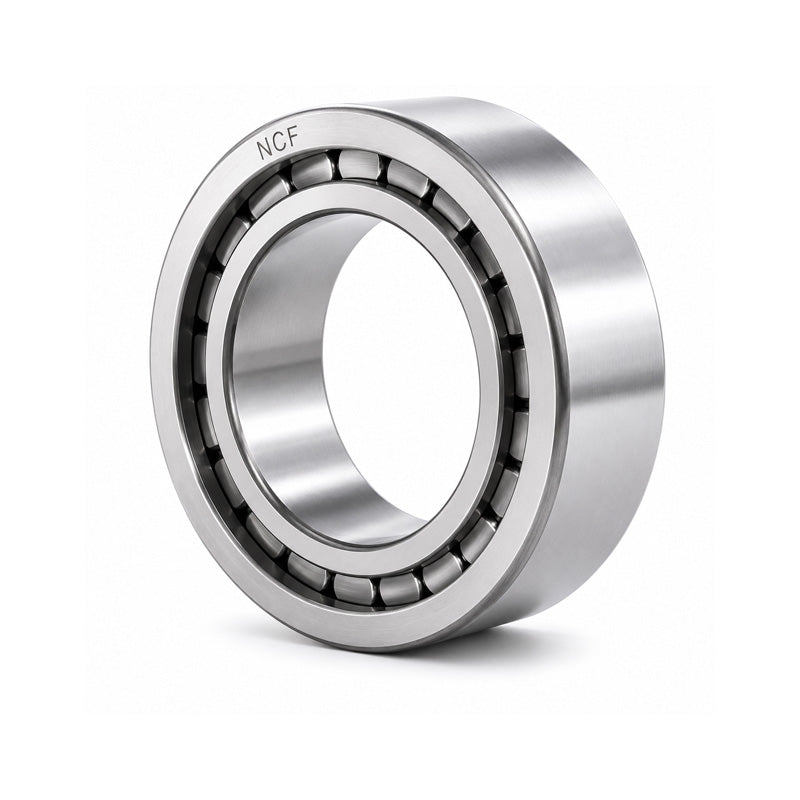

NCF3020VC3 Full Complement Cylindrical Roller Bearing 100x150x37mm

Name: NCF3020VC3 Full Complement Cylindrical Roller Bearing 100x150x37mm
Brand: Major Brand
SKU: NCF.3020.VC3.MB
Price: 325.00 CHF
Availability: InStock

CHF 325.00 ex VAT

Sale Sold out

Equivalent to: SL18 3020C3 NCF 3020 CV.C3

In stock

Price Break

10+ CHF 260.02

19+ CHF 245.42

29+ CHF 242.49

39+ CHF 239.57

49+ CHF 236.65

74+ CHF 233.73

99+ CHF 219.12

199+ CHF 216.20

249+ CHF 213.28

499+ CHF 210.36

999+ CHF 204.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing
Benefits:Tolerate axial load in one direction, none separable construction

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 100mm
Outside Diameter:: 150mm
Width:: 37mm
Seals / Shields:: None
Clearance:: C3

Technical

d	100mm
D	150mm
B	37mm
Weight	2.15kg
