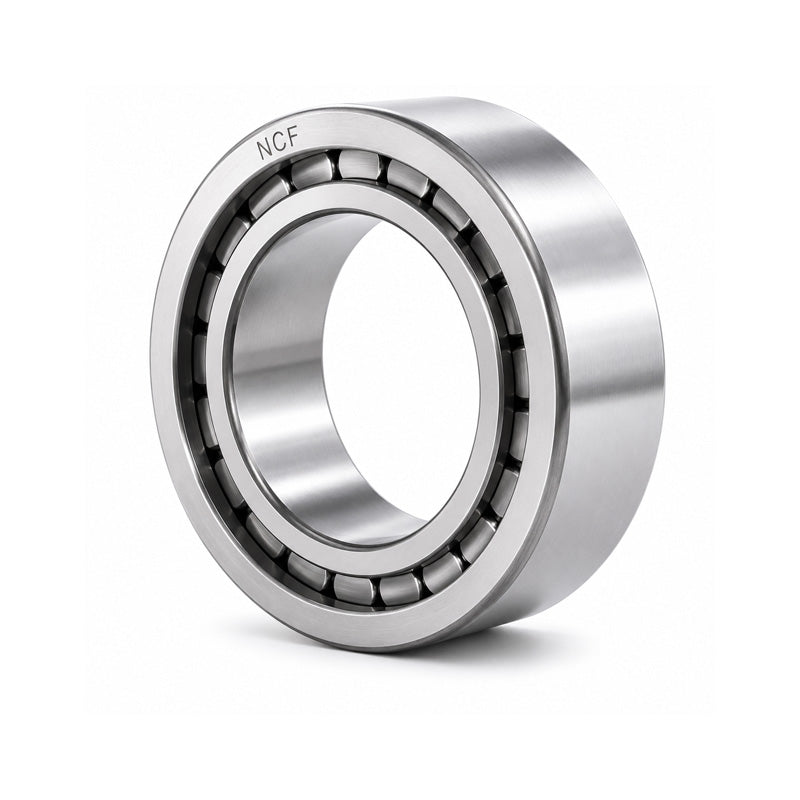

• NCF2976VC3 Full Complement Cylindrical Roller Bearing 380x520x82mm
1 1

SKU: NCF.2976.VC3.MB

NCF2976VC3 Full Complement Cylindrical Roller Bearing 380x520x82mm

NCF2976VC3 Full Complement Cylindrical Roller Bearing 380x520x82mm
CHF 5,992.00 ex VAT
CHF 5,992.00 ex VAT
Sale Sold out

Equivalent to: SL18 2976C3 NCF 2976 CV.C3

In stock

Price Break
10+ CHF 4,795.11
19+ CHF 4,525.72
29+ CHF 4,471.85
39+ CHF 4,417.97
49+ CHF 4,364.09
74+ CHF 4,310.21
99+ CHF 4,040.82
199+ CHF 3,986.95
249+ CHF 3,933.07
499+ CHF 3,879.19
999+ CHF 3,771.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing
Benefits:Tolerate axial load in one direction, none separable construction
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
380mm
Outside Diameter:
520mm
Width:
82mm
Seals / Shields:
None
Clearance:
C3
Technical
d 380mm
D 520mm
B 82mm
Weight 50.8kg
