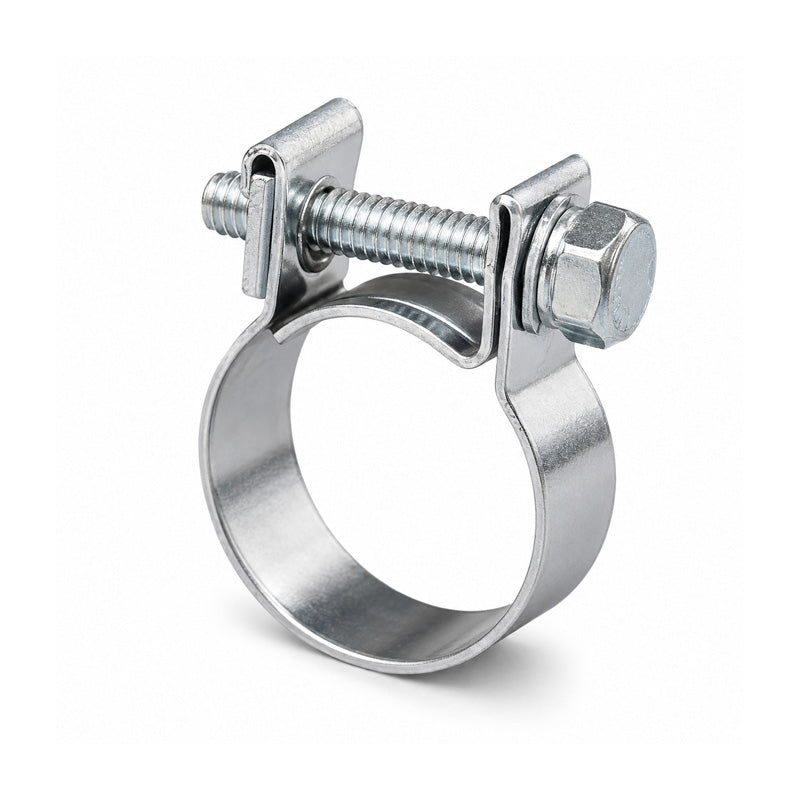

NB1012SS 304 Stainless Steel Jubilee Junior Clip Adjustment Range 10mm-12mm Band Width 9.1mm

Name: NB1012SS 304 Stainless Steel Jubilee Junior Clip Adjustment Range 10mm-12mm Band Width 9.1mm
Brand: Jubilee
SKU: NB1012SS-JUB
Price: 3.00 CHF
Availability: InStock

CHF 3.00 ex VAT

Sale Sold out

In stock

Price Break

5+ CHF 1.83

10+ CHF 1.57

20+ CHF 1.44

50+ CHF 1.31

100+ CHF 1.05

500+ CHF 0.92

1000+ CHF 0.79

1001+ CHF 0.00

1002+ CHF 0.00

1003+ CHF 0.00

1004+ CHF 0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

304 Stainless Steel Jubilee Junior Clip: These small, nut and bolt clips are for use in low pressure applications such as fuel lines where little clamping force is needed.
Benefits: Ideal for low pressures.

Brand / Quality:: Jubilee - High Quality
Width:: 9.1mm
Min Adjustment Range:: 10mm
Max Adjustment Range:: 12mm

Technical

Adjustment Range	10mm - 12mm
Band Width (+/- 0.1)	9.1mm
Band Thickness (+/- 0.1)	0.6mm
Recommended Torque	1.5Nm
Maximum Torque	2Nm
Maximum Pressure	50 Psi
