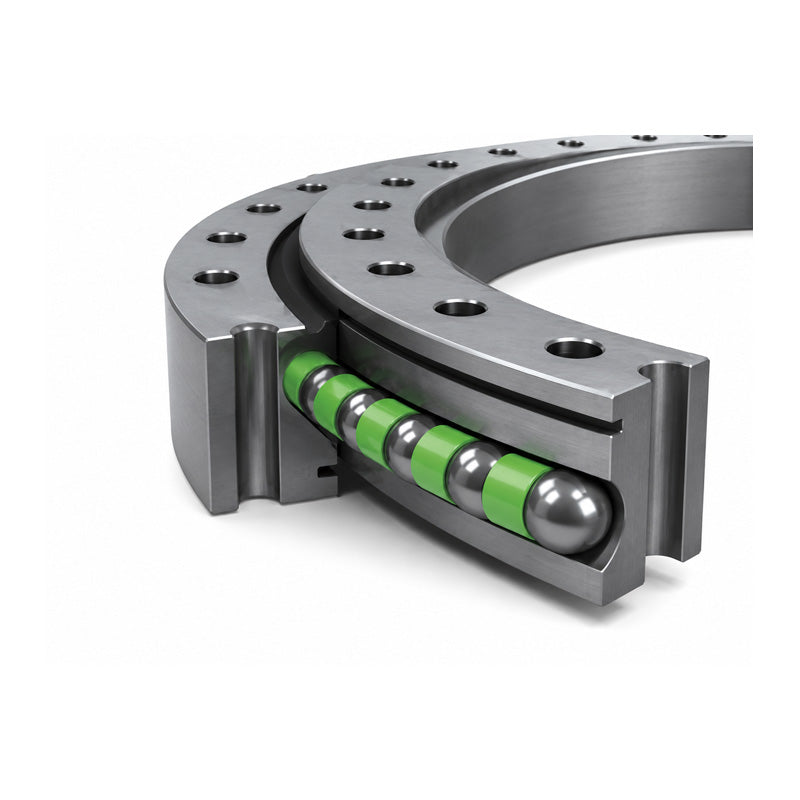

ISB NB1.20 Precision Series 1016mm Diameter Untoothed One Row Slewing Ball Bearing Allow 7-10 Days

Slewing Bearing: These bearings are often used but not limited to heavy machinery and offer a smooth, stable, lateral rotational movement. They are incredibly strong and are capable of carrying high loads.
Slewing rings provide very reliable rotational options where precision is a requirement.
Used to rotate cranes, excavator cabs or even massive satellite dishes slewing bearings provide rotational and tilting functions with high degrees of precision and repetition.
Often referred to as Slewing Rings or Slewing Bearings they are ideally suited to heavy equipment where high loads are present at high or low rotational speeds or are equally well suited in lower loaded applications. All Italcuscinetti ISB are made to the highest standards, where balls bearings are used the balls conform to DIN5401 and where cylindrical rollers are used they conform to DIN5402. All manufacturing facilities within ISB operate to ISO9001:2008 standards allowing Italcuscinetti to ensure that there are stringent quality control checks in place at every stage of manufacture, Italcusinetti have quality control centres at their headquarters in Italy and at their manufacturing plant in Asia, meaning that only bearings meeting their high standards reach the market.
Benefits: Ideal for very heavy machinery where huge loads are present at high or low rotational speeds.

Bolt Tightening
On Installation please follow these guidelines:
1. Use a torque wrench or a hydraulic preloading tool.
2. Use only bolts with shanks for installation (no set screws).
3. Use bolts, nuts and plain washers.
4. Do not re-use bolts, nuts and washers.
5. Check the tightening torque of the bolts after every 600 working hours.


Tightening sequence:
We recommend to tighten the bolts in three steps, 1st at 305 torque, 2nd 70% and 3rd 100% of below torque values. Check the rotation of the bearing during the tightening sequence to be sure it does not bind. If problems occur, dismount clean the area of any debris and start again. A clean work area will produce best results.

Brand / Quality:

ISB - Good Quality

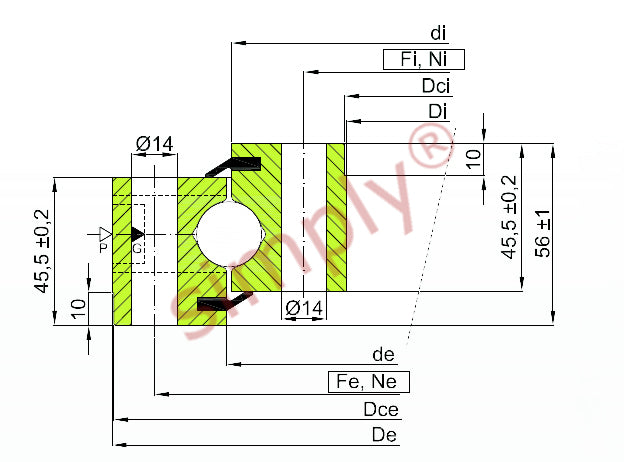

Inside Diameter:

872mm

Outside Diameter:

1016mm

Height:

45.5 ±0.2mm
