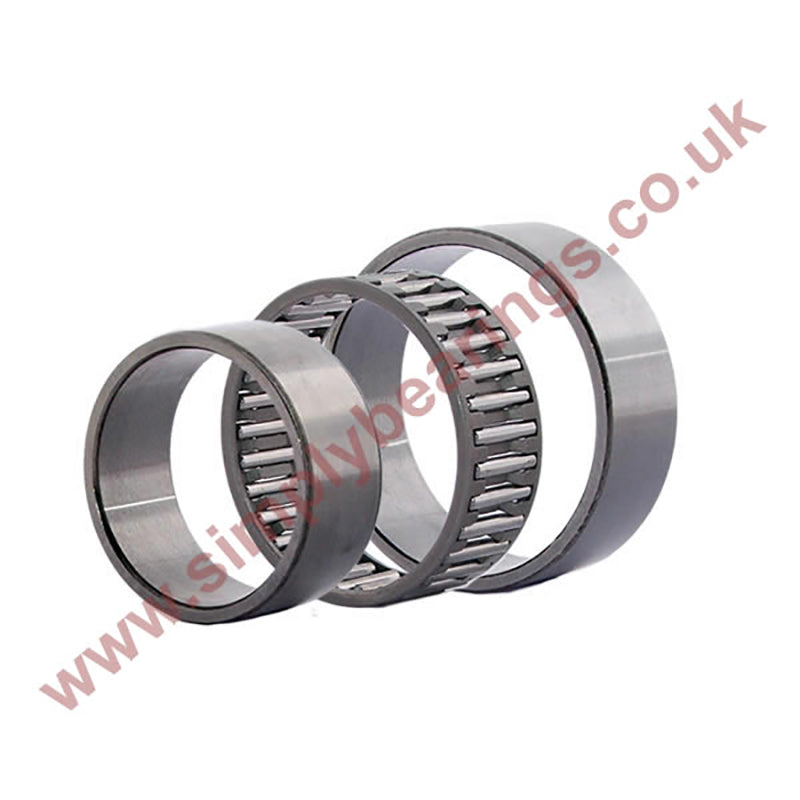

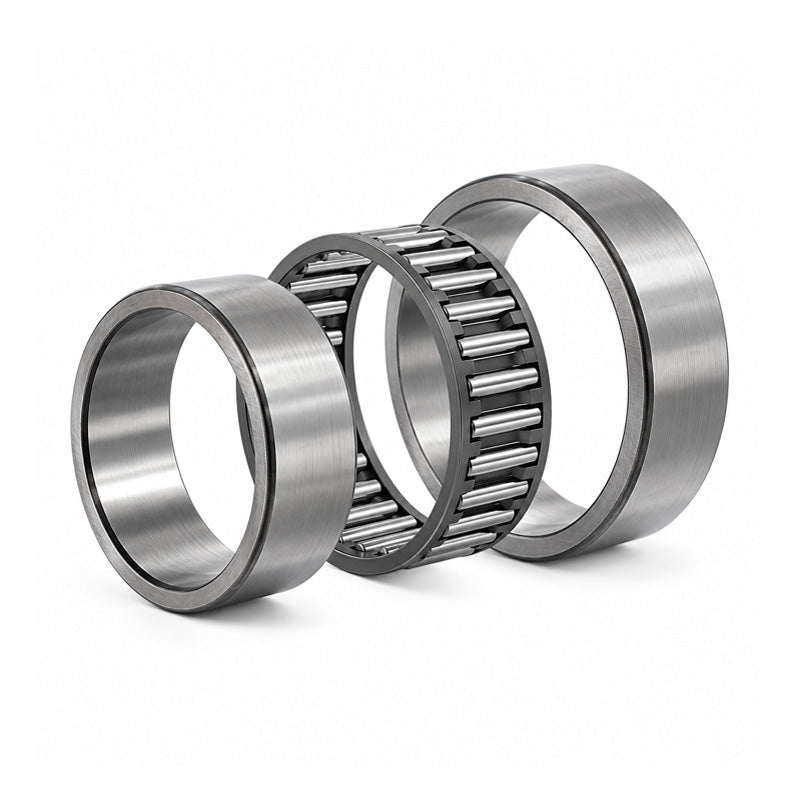

Major Brand NAO15x28x13 Needle Roller Bearings with Machined Rings and an Inner Ring

Name: Major Brand NAO15x28x13 Needle Roller Bearings with Machined Rings and an Inner Ring
Brand: Major Brand
SKU: NAO15x28x13-MB
Price: 25.00 CHF
Availability: InStock

CHF 25.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 19.70

19+ CHF 18.60

29+ CHF 18.37

39+ CHF 18.15

49+ CHF 17.93

74+ CHF 17.71

99+ CHF 16.60

199+ CHF 16.38

249+ CHF 16.16

499+ CHF 15.94

999+ CHF 15.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting.
Benefits: Separable, ease of mounting.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 15mm
Outside Diameter:: 28mm
Width:: 13mm

Technical

d	15mm
D	28mm
B	13mm
Dynamic load	9520 N
Static load	14600 N
Fatigue load limit Pu	1660 N
Speed in grease	14000 rpm
Speed in oil	20000 rpm
E	24mm
F	20mm
r1r2 min	0.3mm
S (axial disp)	0.5mm
da	23.6mm
db	19.5mm
Da	24.3mm
Db	20.4mm
ra max	0.3mm
Weight	29 g
