SKU: NA4840-MB
Major Brand NA4840 Needle Roller Bearing With Shaft Sleeve 200x250x50mm
- Regular price
- CHF 1,607.00 ex VAT
- Sale price
- CHF 1,607.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 1,430.23
19
CHF 1,349.88
29
CHF 1,333.81
39
CHF 1,317.74
49
CHF 1,301.67
74
CHF 1,285.60
99
CHF 1,205.25
199
CHF 1,189.18
249
CHF 1,173.11
499
CHF 1,157.04
999
CHF 1,124.90
SKU:
NA4840-MB
Major Brand NA4840 Needle Roller Bearing With Shaft Sleeve 200x250x50mm
- Regular price
- CHF 1,607.00 ex VAT
- Sale price
- CHF 1,607.00
- Regular price
-
Description
|
Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes. Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring. |
Technical

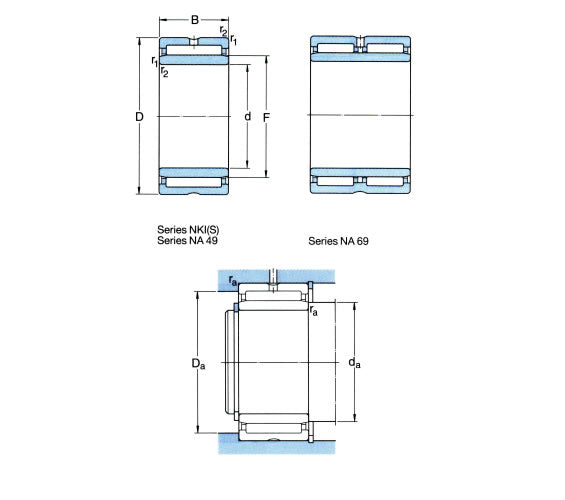

| d | = | 200mm |
| D | = | 250mm |
| B | = | 50mm |
| Dynamic load | = | 224000 N |
| Static load | = | 735000 N |
| Fatigue load limit Pu | = | 75000 N |
| Speed in grease | = | 1200 rpm |
| Speed in oil | = | 1800 rpm |
| F | = | 220mm |
| r1r2 | = | 1.5mm |
| S (axial disp) | = | 1.5mm |
| da min | = | 208mm |
| Da max | = | 242mm |
| ra max | = | 1.5mm |
