SKU: N750-SKF
SKF N750 Lock Nut (Lock Washer Type) 29.536x32.313x34.255 inch
SKF N750 Lock Nut (Lock Washer Type) 29.536x32.313x34.255 inch
Out of stock
Share this product
Description
Description
Low Profile Lock Nuts: These lock nuts are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. These low profile lock nuts are commonly used with bearings in the 23048, 23148 and 23248 series and larger.
Benefits: Efficient, secure, inexpensive, removable and re-useable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- 29.536 inch
Technical
Technical

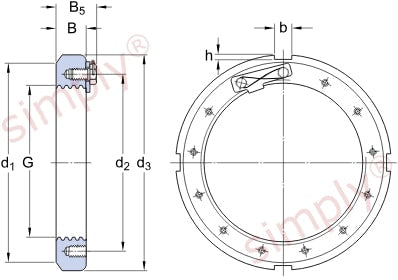

| G | 29.536 inch |
|---|---|
| Threads per inch | 3 |
| d<sub>1</sub> | 32.313 inch |
| d<sub>2</sub> | 32.235 inch |
| d<sub>3</sub> max | 34.255 inch |
| B | 3.578 inch |
| B<sub>5</sub> | 4.169 inch |
| b | 2.23 inch |
| h | 1.01 inch |
| Mass | 106.5942 kg |
| Associated spanner | TMFN600-750 |
| Associated locking device | PL750 |
| Hexagonal head bolt | 5/8-11x1-1/4 |
