SKU: N1400-325SS

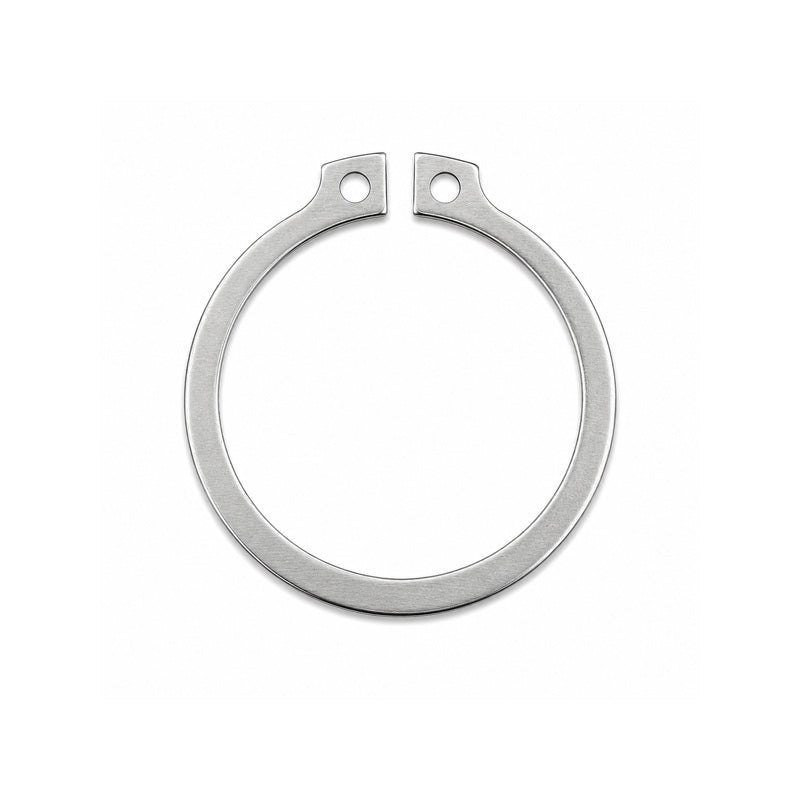

Stainless Steel External Circlip for 3.25 inch Shaft Diameter Un-Sprung Diameter 3.006 inch
Stainless Steel External Circlip for 3.25 inch Shaft Diameter Un-Sprung Diameter 3.006 inch
Equivalent to: N1400-325SS
Out of stock
Description
Description
|
Stainless Steel Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Stainless Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable, corrosion resistant. |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 76.35mm = 3.006 inch
- Material:
- Stainless Steel
- Shaft Size:
- 82.55mm = 3.25 (3-1/4) inch
- Thickness:
- 2.36mm = 0.093 inch
- Groove Diameter:
- 78.13mm = 3.076 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 3.250 inch |
| Ring Thickness (t) | 0.093 inch |
| Thickness tolerance (t) | 0.003 inch |
| Unstressed diameter (D) | 3.006 inch |
| Unstressed diameter tolerance (D) | +0.020 / -0.030 inch |
| Lug (L) | 0.284 inch |
| Beam (b) | 0.276 inch |
| h | 0.145 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 3.076 inch |
| Groove tolerance (G) | 0.006 inch |
| Minimum Groove Width (W) | 0.103 inch |
| Groove Width Tolerance (W) | +0.005 / -0.000 inch |
| Groove depth (d) | 0.087 inch |
