SKU: N1400-055

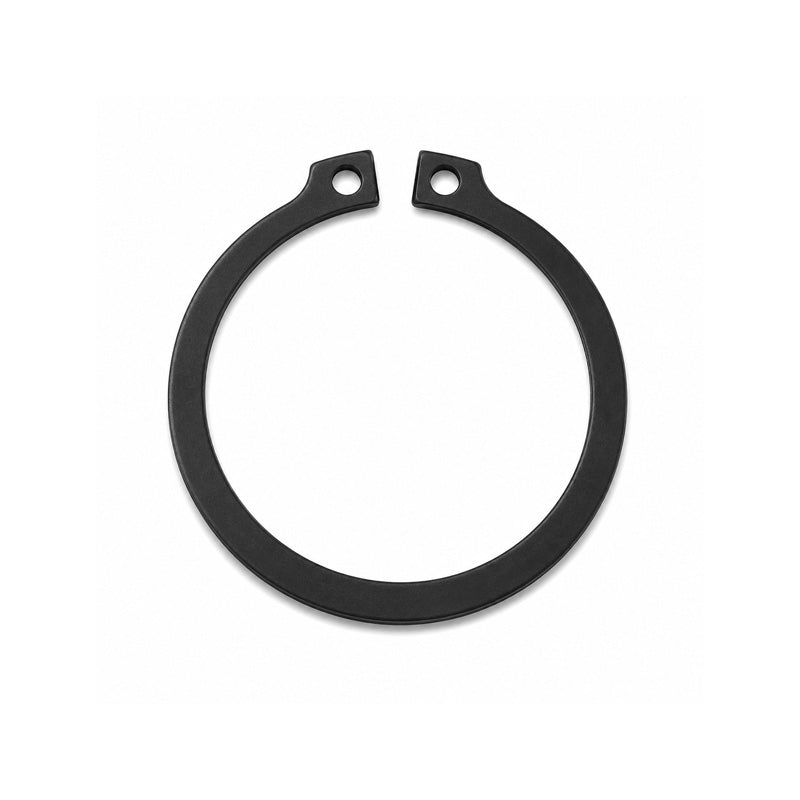

External Circlip for 0.55 inch Shaft Diameter Un-Sprung Diameter 0.509 inch
External Circlip for 0.55 inch Shaft Diameter Un-Sprung Diameter 0.509 inch
Equivalent to: N1400-055
Out of stock
Description
Description
|
Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable. |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 12.93mm = 0.509 inch
- Material:
- Sprung Carbon Steel
- Shaft Size:
- 14mm = 0.551 inch
- Thickness:
- 0.89mm = 0.035 inch
- Groove Diameter:
- 13.18mm = 0.519 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 0.551 inch |
| Ring Thickness (t) | 0.035 inch |
| Thickness tolerance (t) | 0.002 inch |
| Unstressed diameter (D) | 0.509 inch |
| Unstressed diameter tolerance (D) | +0.005 / -0.010 inch |
| Lug (L) | 0.111 inch |
| Beam (b) | 0.053 inch |
| h | 0.045 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 0.519 inch |
| Groove tolerance (G) | 0.002 inch |
| Minimum Groove Width (W) | 0.039 inch |
| Groove Width Tolerance (W) | +0.003 / -0.000 inch |
| Groove depth (d) | 0.016 inch |
