SKU: N1300-700SS

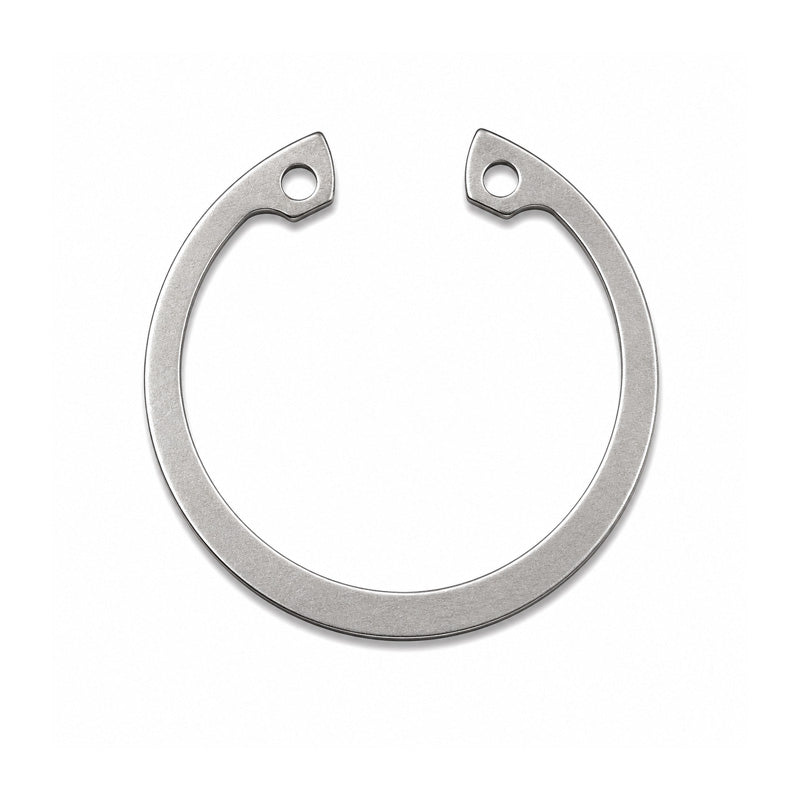

Stainless Steel Internal Circlip for 7 inch Bore Diameter Un-Sprung Diameter 7.720 inch
Stainless Steel Internal Circlip for 7 inch Bore Diameter Un-Sprung Diameter 7.720 inch
Equivalent to: N1300-700SS
Out of stock
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 177.8mm = 7 inch
- Outside Diameter:
- 196.09mm = 7.72 inch
- Material:
- Stainless Steel
- Thickness:
- 3.97mm = 0.156 (5/32) inch
- Groove Diameter:
- 185.8mm = 7.315 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 7.000 inch |
| Ring Thickness (t) | 0.156 inch |
| Thickness tolerance (t) | 0.156 inch |
| Unstressed diameter (D) | 7.720 inch |
| Unstressed diameter tolerance (D) | 0.08 inch |
| Lug (L) | 0.54 inch |
| Beam (b) | 0.485 inch |
| h | 0.182 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 7.315 inch |
| Groove tolerance (G) | 0.008 inch |
| Minimum Groove Width (W) | 0.174 inch |
| Groove Width Tolerance (W) | +0.008 / -0.000 inch |
| Groove depth (d) | 0.157 inch |
