Stainless Steel Internal Circlip for 5 inch Bore Diameter Un-Sprung Diameter 5.485 inch
Stainless Steel Internal Circlip for 5 inch Bore Diameter Un-Sprung Diameter 5.485 inch
Equivalent to: N1300-500SS
Out of stock
Description
Description
|

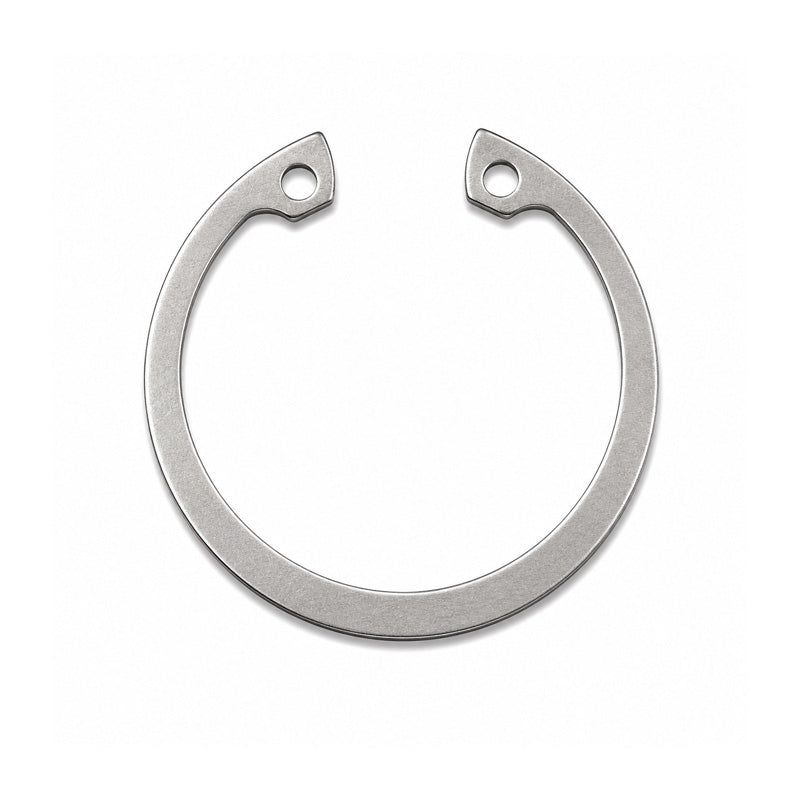

Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 127mm = 5 inch
- Outside Diameter:
- 139.32mm = 5.485 inch
- Material:
- Stainless Steel
- Thickness:
- 2.78mm = 0.109 (7/64) inch
- Groove Diameter:
- 133.6mm = 5.26 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 5.000 inch |
| Ring Thickness (t) | 0.109 inch |
| Thickness tolerance (t) | 0.109 inch |
| Unstressed diameter (D) | 5.485 inch |
| Unstressed diameter tolerance (D) | 0.065 inch |
| Lug (L) | 0.445 inch |
| Beam (b) | 0.395 inch |
| h | 0.151 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 5.260 inch |
| Groove tolerance (G) | 0.006 inch |
| Minimum Groove Width (W) | 0.120 inch |
| Groove Width Tolerance (W) | +0.005 / -0.000 inch |
| Groove depth (d) | 0.13 inch |
