SKU: N1300-334SS

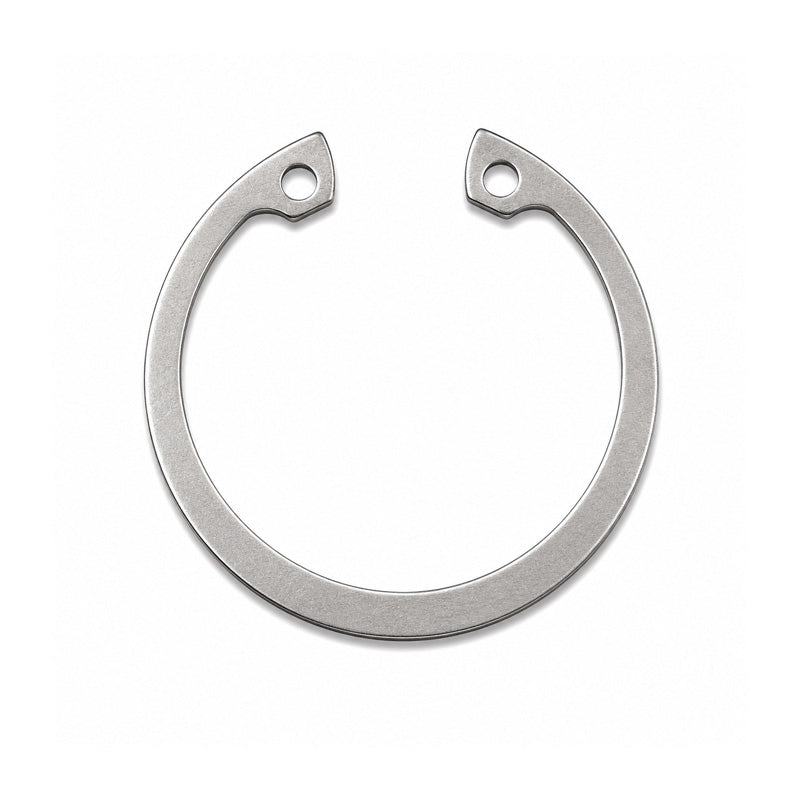

Stainless Steel Internal Circlip for 3.34 inch Bore Diameter Un-Sprung Diameter 3.734 inch
Stainless Steel Internal Circlip for 3.34 inch Bore Diameter Un-Sprung Diameter 3.734 inch
Equivalent to: N1300-334SS
Out of stock
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 84.93mm = 3.346 (3-11/32) inch
- Outside Diameter:
- 94.85mm = 3.734 (3-47/64) inch
- Material:
- Stainless Steel
- Thickness:
- 2.78mm = 0.109 (7/64) inch
- Groove Diameter:
- 90.07mm = 3.546 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 3.346 inch |
| Ring Thickness (t) | 0.109 inch |
| Thickness tolerance (t) | 0.109 inch |
| Unstressed diameter (D) | 3.734 inch |
| Unstressed diameter tolerance (D) | 0.055 inch |
| Lug (L) | 0.323 inch |
| Beam (b) | 0.276 inch |
| h | 0.123 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 3.546 inch |
| Groove tolerance (G) | 0.006 inch |
| Minimum Groove Width (W) | 0.120 inch |
| Groove Width Tolerance (W) | +0.005 / -0.000 inch |
| Groove depth (d) | 0.1 inch |
