SKU: N1300-137SS

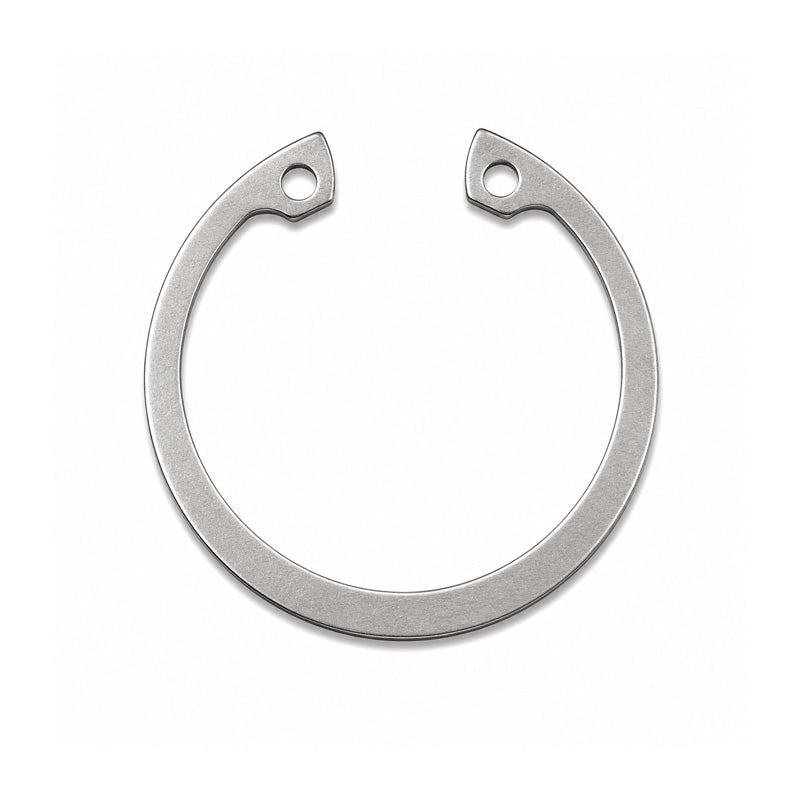

Stainless Steel Internal Circlip for 1.37 inch Bore Diameter Un-Sprung Diameter 1.526 inch
Stainless Steel Internal Circlip for 1.37 inch Bore Diameter Un-Sprung Diameter 1.526 inch
Equivalent to: N1300-137SS
Out of stock
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 38.76mm = 1.526 inch
- Material:
- Stainless Steel
- Thickness:
- 1.27mm = 0.05 inch
- Groove Diameter:
- 37.11mm = 1.461 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 1.375 inch |
| Ring Thickness (t) | 0.05 inch |
| Thickness tolerance (t) | 0.05 inch |
| Unstressed diameter (D) | 1.526 inch |
| Unstressed diameter tolerance (D) | +0.025 / -0.020 inch |
| Lug (L) | 0.185 inch |
| Beam (b) | 0.130 inch |
| h | 0.076 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 1.461 inch |
| Groove tolerance (G) | 0.004 inch |
| Minimum Groove Width (W) | 0.056 inch |
| Groove Width Tolerance (W) | +0.004 / -0.000 inch |
| Groove depth (d) | 0.043 inch |
