SKU: N1300-1000SS

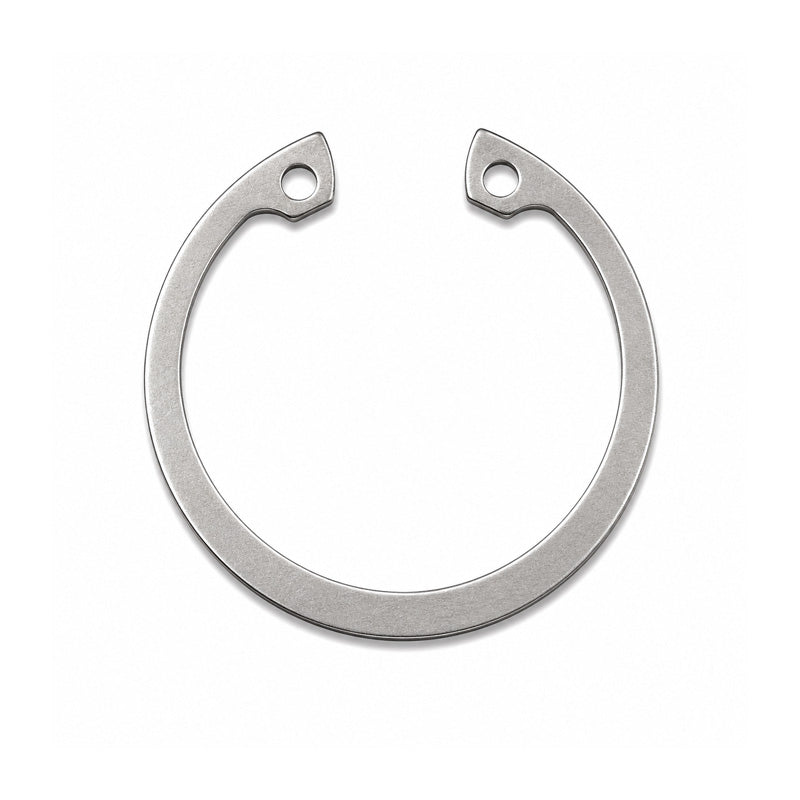

Stainless Steel Internal Circlip for 10 inch Bore Diameter Un-Sprung Diameter 10.920 inch
Stainless Steel Internal Circlip for 10 inch Bore Diameter Un-Sprung Diameter 10.920 inch
Equivalent to: N1300-1000SS
Out of stock
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 254mm = 10 inch
- Outside Diameter:
- 277.37mm = 10.92 inch
- Material:
- Stainless Steel
- Thickness:
- 4.76mm = 0.187 (3/16) inch
- Groove Diameter:
- 265.43mm = 10.45 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 10.000 inch |
| Ring Thickness (t) | 0.187 inch |
| Thickness tolerance (t) | 0.187 inch |
| Unstressed diameter (D) | 10.920 inch |
| Unstressed diameter tolerance (D) | 0.09 inch |
| Lug (L) | LUG inch |
| Beam (b) | 0.622 inch |
| h | 0.182 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 10.450 inch |
| Groove tolerance (G) | 0.008 inch |
| Minimum Groove Width (W) | 0.209 inch |
| Groove Width Tolerance (W) | +0.008 / -0.000 inch |
| Groove depth (d) | 0.225 inch |
