RHP MST30 Cast Iron Take Up Unit and 30mm Bore Insert
RHP MST30 Cast Iron Take Up Unit and 30mm Bore Insert
Regular price
CHF 103.00
ex VAT
Regular price
Sale price
CHF 103.00
ex VAT
In stock
Price Break
10+
CHF 82.14
20+
CHF 77.53
30+
CHF 76.61
40+
CHF 75.68
50+
CHF 74.76
75+
CHF 73.84
100+
CHF 69.22
200+
CHF 68.30
250+
CHF 67.38
500+
CHF 66.45
1000+
CHF 64.61
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- MST

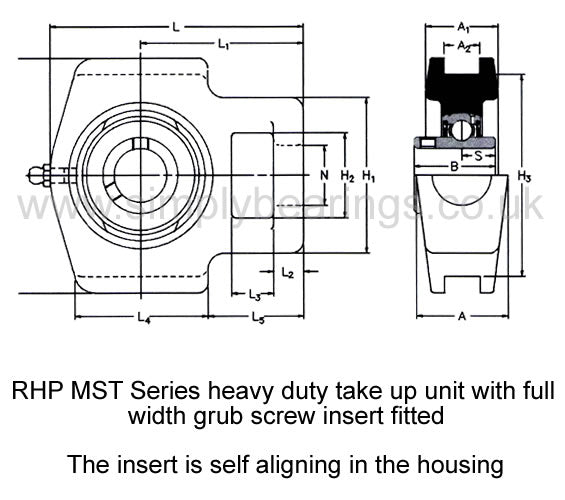

Technical
Technical
| Bore | 30mm |
|---|---|
| L | 124mm |
| L1 | 75.5mm |
| L2 | 12.5mm |
| L3 | 16.5mm |
| L4 | 64.5mm |
| L5 | 43mm |
| H | 101.5mm |
| H1 | 64.5mm |
| H2 | 37.5mm |
| H3 | 89mm |
| N | 22.5mm |
| A | 36.5mm |
| A1 | 30mm |
| A2 | 13.5mm |
| B | 42.88mm |
| B5 | -mm |
| s | 17.53mm |
| d1 | 46.69mm |
| d4 | -mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-30G+insonly">1035-30G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
