SKU: MSFT1045-1.7/16K-RHP

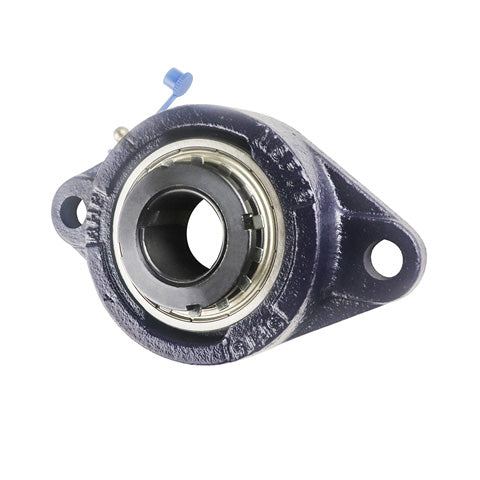

RHP MSFT1045-1-7/16K Two Bolt Oval Cast Iron Flange Housing 1-7/16 inch Bore Insert
Out of stock
Share this product
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- MSFT
- Bolt Hole Centres:
- 148.49mm = 5.846 inch
Technical
| Bore | 1-7/16 inch |
|---|---|
| L | 4.374 inch |
| H | 7.063 inch |
| J | 5.846 inch |
| G | 0.625 inch |
| A | 1.39 inch |
| A4 | 0.563 inch |
| A5 | 1.831 inch |
| B5 | 1.535 inch |
| s | - inch |
| d4 | 2.559 inch |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045K+insonly">1045K Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
