SKU: MSC70-RHP
RHP MSC70 Cast Iron Cartridge Unit with 70mm Bore Insert 158.78mm Outside Diameter
RHP MSC70 Cast Iron Cartridge Unit with 70mm Bore Insert 158.78mm Outside Diameter
Regular price
CHF 228.00
ex VAT
Regular price
Sale price
CHF 228.00
ex VAT
In stock
Price Break
10+
CHF 182.23
20+
CHF 171.99
30+
CHF 169.95
40+
CHF 167.90
50+
CHF 165.85
75+
CHF 163.80
100+
CHF 153.57
200+
CHF 151.52
250+
CHF 149.47
500+
CHF 147.42
1000+
CHF 143.33
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 158.78mm
- Style:
- MSC

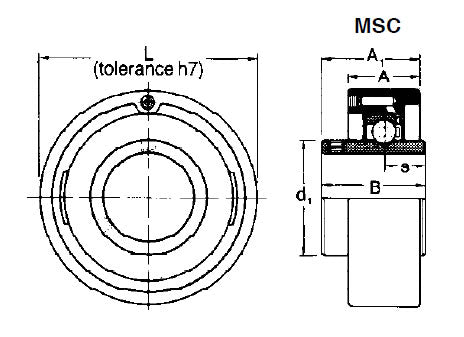

Technical
Technical
| Bore | 70mm |
|---|---|
| L | 158.775mm |
| A | 50.8mm |
| A1 | 69.8mm |
| B | 74.63mm |
| s | 30.23mm |
| d1 | 87 |
| Dynamic load Cr | 61000 N |
| Static load Cor | 45000 N |
| Rex max speed | 2450 rpm |
| Weight | 5.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1070-70G+insonly">1070-70G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
