SKU: MP90-RHP

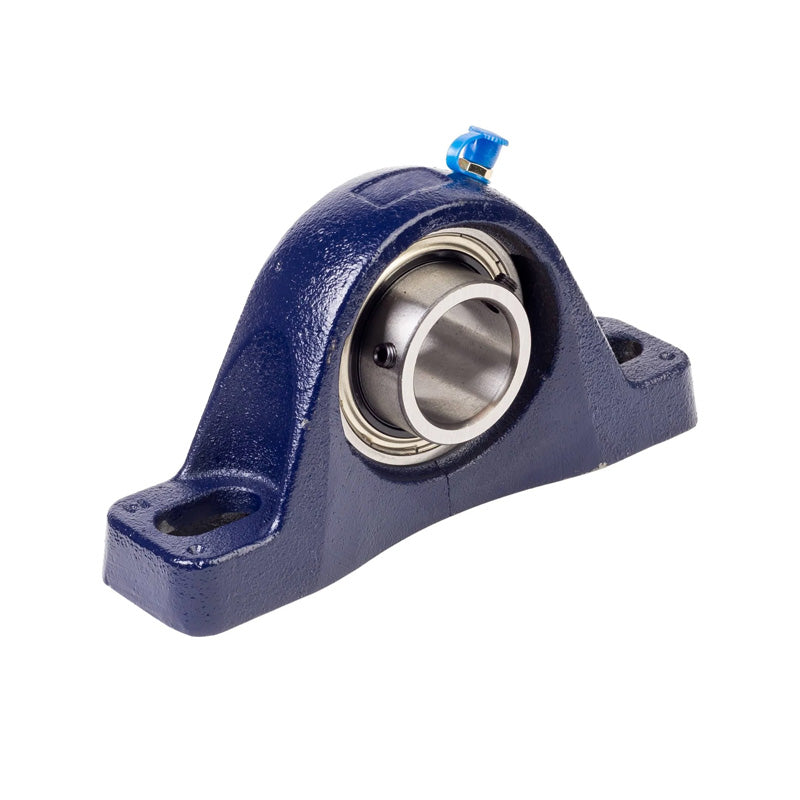

RHP MP90 Two Bolt Cast Iron Pillow Block and 90mm Bore Grub Screw Insert
RHP MP90 Two Bolt Cast Iron Pillow Block and 90mm Bore Grub Screw Insert
Regular price
CHF 445.00
ex VAT
Regular price
Sale price
CHF 445.00
ex VAT
In stock
Price Break
10+
CHF 355.53
20+
CHF 335.56
30+
CHF 331.57
40+
CHF 327.57
50+
CHF 323.58
75+
CHF 319.58
100+
CHF 299.61
200+
CHF 295.61
250+
CHF 291.62
500+
CHF 287.62
1000+
CHF 279.63
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 90mm
- Style:
- MP
- Bolt Hole Centres:
- 9.689-12.563mm
Technical
Technical
| Bore | 90mm |
|---|---|
| L | 15mm |
| H | 4000mm |
| H1 | 1.311mm |
| H2 | 8.252mm |
| J max | 12.563mm |
| J min | 9.689mm |
| G | 1mm |
| A | 4.374mm |
| A1 | 3.126mm |
| B | 3.781mm |
| s | 1.564mm |
| d1 | 4.396mm |
| Dynamic load Cr | 96000 N |
| Static load Cor | 71500 N |
| Rec max speed | 1900 rpm |
| Weight | 23.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1090-90G+insonly">1090-90G Click Here</a> |
| Casting group | 12 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
