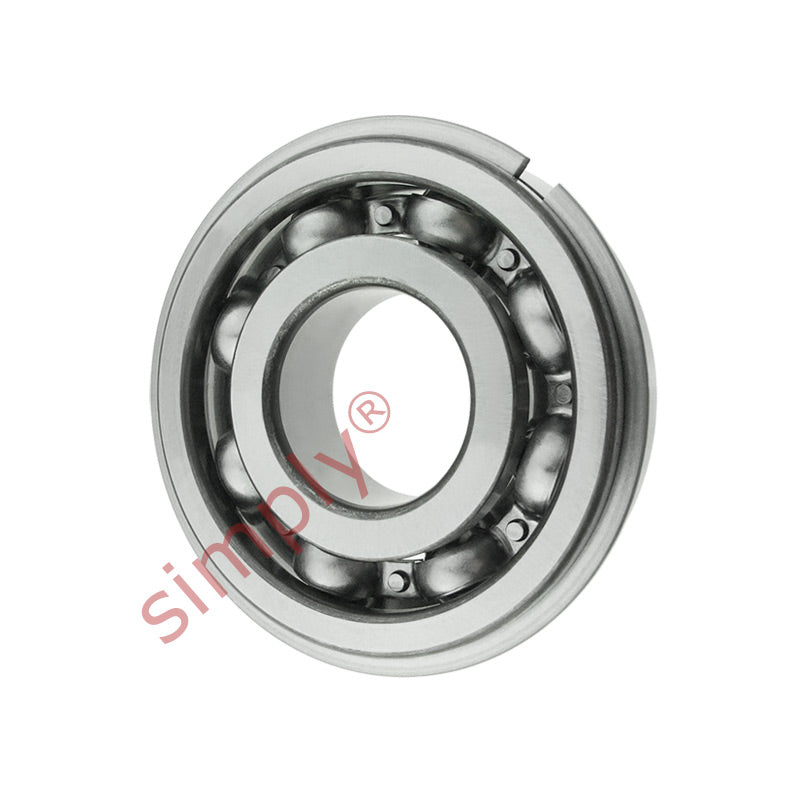

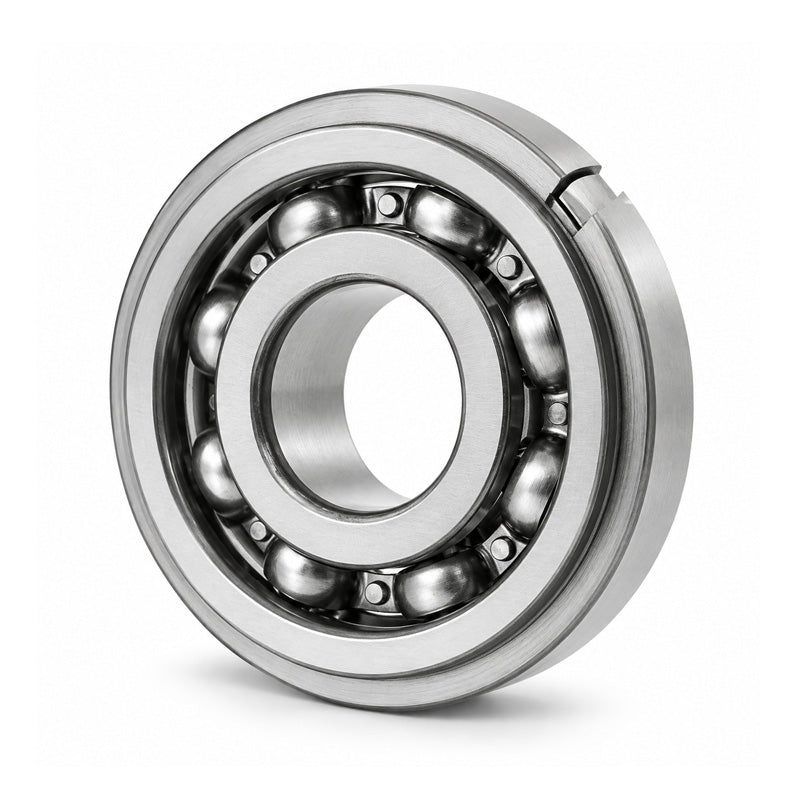

• MJ1-5/8NR Imperial Open Snap Ring Bearing 1-5/8x4x15/16 inch
1 1

SKU: MJ.1-5/8.NR.EU

MJ1-5/8NR Imperial Open Snap Ring Bearing 1-5/8x4x15/16 inch

MJ1-5/8NR Imperial Open Snap Ring Bearing 1-5/8x4x15/16 inch
CHF 67.00 ex VAT
CHF 67.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 53.28
19+ CHF 50.29
29+ CHF 49.69
39+ CHF 49.09
49+ CHF 48.49
74+ CHF 47.90
99+ CHF 44.90
199+ CHF 44.30
249+ CHF 43.70
499+ CHF 43.11
999+ CHF 41.91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
41.28mm = 1.625 (1-5/8) inch
Outside Diameter:
101.6mm = 4 inch
Width:
23.81mm = 0.937 (15/16) inch
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
Bore 1.625 inch
Outside Diameter 4 inch
Width 0.9375 inch
Weight 0.5 kg
