SKU: MFM-101419-08

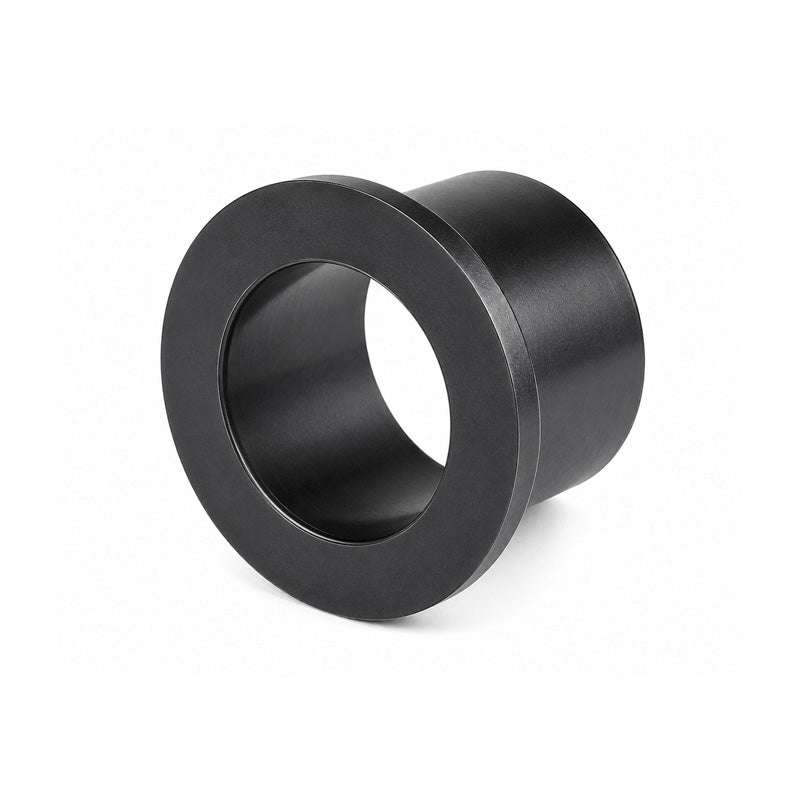

Iglidur MFM10141908 Plastic Flanged Bush 10x14x8mm

Name: Iglidur MFM10141908 Plastic Flanged Bush 10x14x8mm
Brand: Igus
SKU: MFM-101419-08
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

IGUS Iglidur® M250 Series Plastic Bush Bearing: Made from plastic, these bush style plastic bearings are thick and robust making them particularly suited for vibration dampening, in applications with low speeds. They balance edge loads very well and help to minimize noise.
Benefits: Insensitive to misalignment, high impact strength, excellent vibration dampening

Brand / Quality:: Igus - High Quality
Inside Diameter:: 10mm
Outside Diameter:: 14mm
Width:: 8mm

Technical

Inside Diameter d1	10mm
Outside Diameter d2	14mm
Length b1	8mm
Chamfer f	0.5mm
d1 Tolerance*	+0.04/+0.13
Thickness*	<1mm: chamfer = 20deg
d3	19mm
Flange Thickness b2	2mm
Temperature Min/Max	-40/+80 degC
