SKU: MFC35-RHP
RHP MFC35 Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP MFC35 Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
Regular price
CHF 101.00
ex VAT
Regular price
Sale price
CHF 101.00
ex VAT
In stock
Price Break
10+
CHF 80.69
20+
CHF 76.15
30+
CHF 75.25
40+
CHF 74.34
50+
CHF 73.44
75+
CHF 72.53
100+
CHF 68.00
200+
CHF 67.09
250+
CHF 66.18
500+
CHF 65.28
1000+
CHF 63.46
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- MFC
- Pitch Circle Diameter:
- 111.12mm
Technical
Technical

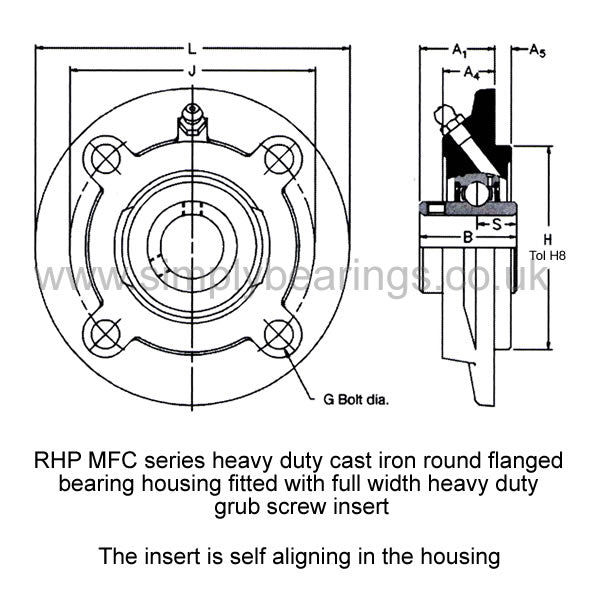

| Bore | 35mm |
|---|---|
| L | 133.4mm |
| H | 92.07mm |
| J | 111.12mm |
| G | 10mm |
| A1 | 38.1mm |
| A4 | 19mm |
| A5 | 6.4mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 52.7mm |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-35G+insonly">1040-35G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
